Clear-com rs-603 dual channel beltpack, rts-compatible,

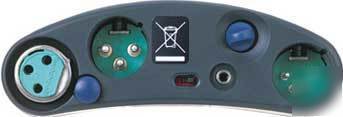

Clear-Com RS-603 Dual Channel Beltpack, RTS-compatible, 3-pin XLR Male and Female, 4-pin XLR Male Headset Connector, RS603
Dual channel with 3-pin female and male XLR, 4-pin female XLR headset connector, 2.5mm AUX headset connector and an RS-232 connector. Onboard switch selects loop through connector as audio program in. A separate volume control sets program level. Factory default set for RTS compatibility. AC call signaling on both channels; DC call signaling on Channel B (reversible). Channel exclusive allows use as a single channel beltpack.
* Auxiliary headset jack for Clear-Com CC-25ultra-light headset
* Clear-Com TW and RTW-TW compatibility on selectedmodels
Program Input: Balanced, transformer isolated
InputSensitivity: -20dBv to +10dBv
Frequency Response: 50Hz-18kHz +/-2dB
DC VoltageRange: 12-32 volts
* Amplifier Design: I.C. amplifiers, includingsolid-state digital switching and signaling circuits. Current-limited andshort-circuit protected.
FrequencyResponse: 200Hz-12kHz, contoured for intelligibility
