Rex digital temperature controller rex-F900 f series

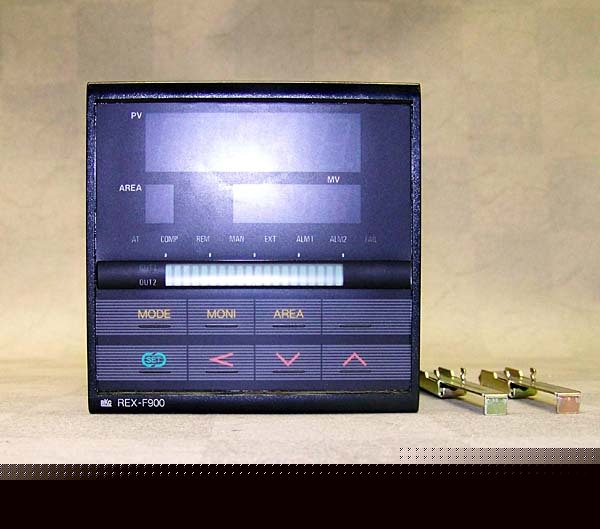

Rex Digital Temperature Controller REX-F900 F Series
* External Dimensions (W x H x D):F900 : 96 x 96 x 100mm
* Self-diagnostic function:ROM RAM check, input value check, CPU power supply monitor, and watchdog timer.
a) 90 to 264V AC (Including supply voltage variation)
[Rating : 100 to 240V AC] (50/60Hz common use)
b) 21.6 to 26.4V AC(Including supply voltage variation)
[Rating : 24V AC] (50/60Hz common use)
c) 21.6 to 26.4V DC(Ripple rate 10% p-p or less)
* Power consumption:F900 : Less than 15VA (at 264V AC) At 24V AC : Less than 8.0VA At 24V DC : Less than 350mA
* Effect by power failure: A power failure of 50 msec or less will not affect the control action. If power failure of more than 50 msec occurs, controller will restart. HOT or COLD start is selectable.
* Operating environments: 0 to 50 C [32 to 122 F] , 45 to 85% RH
* Memory backup: RAM is backed up by a lithium battery.
* Data retaining period: Approx 10 years (depends on storage and operating conditions.)
* Net weight: F900 : Approx. 450g
