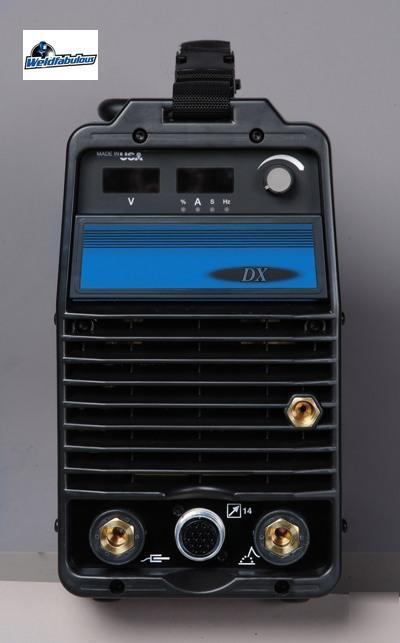

New miller 907099011 dynasty 200DX tig welder
Miller 907099011 Dynasty 200Dx Tig Welder New
Dyansty 200 DX AC TIG Features
Extended AC Balance (30-99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
AC frequency (20-250 hz)controls the width of the arc cone and the force of the arc.
Soft Squarewave for a soft buttery arc with maximum puddle control and good wetting action.
Triangular wave reduces the heat input and is good on thin aluminum. Fast travel speeds.
Exceptionally smooth and precise arc for welding exotic materials.
AC frequency control adds additional stability when Stick welding in AC for smoother welds.
Low OCV Stick is a simple design that reduces open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Built-in pulser reduces heat input; adds arc stability (DX model only).
Portable in the shop or at the job site - at 45 lb the unit is easily moved from location to location.
Squarewave Technology is the AC output of a power source that has the ability to rapidly switch between the positive and negative half cycles of alternating current.
Internal components are protected from damage by thermal overload protection hich automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted. Process
* Pulsed TIG (GTAW-P) with DX model only
* 200 A at 18 V, 20% Duty Cycle
* 150 A at 16 V, 60% Duty Cycle
* 140 A at 15.6 V, 40% Duty Cycle
* 100 A at 14 V, 100% Duty Cycle
* 200 A at 28 V, 20% Duty Cycle
* 130 A at 25.2 V, 60% Duty Cycle
* 100 A at 24 V, 60% Duty Cycle
* 90 A at 23.6 V, 100% Duty Cycle
* 1-200 Amps (1-150 on 120 VAC)
Industrial to Heavy Industrial Apps
* Dynasty 200 DX power source
* Air-Cooled TIG torch adapter
