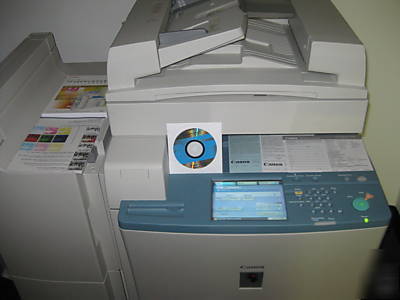

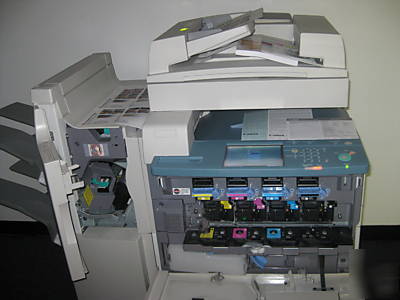

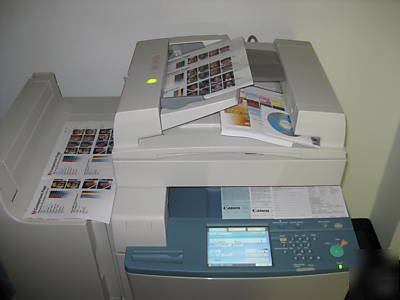

Canon copier irc 3220 color copier copy/print/scan
Canon Copier IRC 3200 Color Copier COPY/PRINT/SCAN
LOW METER - ONLY 130,000 COPIES
With the introduction of the Canon Color imageRUNNER C3220, Canon's definition of true multifunctional color has finally been met. As the premier Color imagePlatform device incorporating MEAP (Multifunctional Embedded Application Platform), with the unique ability to adapt to your specific business applications, the Color imageRUNNER C3220 will set the new industry standard for general office-color multifunctional devices.
With the ability to attain speeds of up to 32 pages per minute for both color and black-and-white output, in a compact, user-friendly design, the Color imageRUNNER C3220 delivers unsurpassed productivity and versatility to every workgroup user. Exceptional multifunction performance is achieved through a dual 250Mhz processor design, 1GB RAM and a 40GB hard disk provided as standard equipment.
Imaging System: Laser Electrostatic Transfer System
Developing System: Dry Dual Component Developing System
Duty Cycle: 50,000 impressions
Image Server Memory: Standard 1GB RAM + 40GB HDD
Scanning Resolution: 600 dpi x 600 dpi
Printing Resolution: Up to 2400 dpi equivalent x 600 dpi
First Copy Time: 13.1 seconds (Color)
Magnification: 25% - 400% (in 1% increments) from platen glass
25% - 200% (in 1% increments) from feeder
Preset Reductions: 25%, 50%, 64%, 73%, 78%
Preset Enlargements: 121%, 129%, 200%, 400%
Acceptable Originals: Sheets, Books and 3-dimensional objects (up to 4.4 lb./2 kg)
Maximum Original Size: 11" x 17"
Standard Paper Capacity: 2 x 550 sheet Paper Cassettes (1,100 sheets) (20 lb. Bond)
Maximum Paper Capacity: 5,000 sheets (4 x 550 sheet cassettes + 100 sheet Bypass + 2,700 sheets Paper Deck)
Cassette: EXEC, STMT-R. LTR-R, LTR, LGL, 11" x 17" and 12" x 18"
Bypass: 3-5/16" x 5-7/8" to 12-5/8" x 18"
Cassette: 17 lb. Bond to 110 lb. Index (64gsm - 209gsm), Transparency
Bypass: 17 lb. Bond to 140 lb. Index (64gsm - 253gsm), Transparency
Duplexing: Standard Automatic Trayless Duplexing
Warm-up Time: 6 minutes max. (after Power On or Sleep Mode)
30 Seconds from Low Power Mode
Power Requirements: 120V AC, 60 Hz, 15A
Dimensions (H x W x D): 31-1/2" x 24-1/8" x 31" (Printer/Reader) (799mm x 620mm x 786 mm)
Weight: Approximately 277 lb. (126 kg) (Printer/Reader)
Estimated Toner Yield: 25,000 impressions each/ @ 5% image coverage
Estimated Drum Yield: 40,000 impressions each
Duplexing Automatic Document Feeder- K1 (Optional)
Acceptable Originals: STMT-R, LTR, LTR-R, LGL, 11" x 17", 12" x 18"
Capacity: 30 sheets (STMT-R, LTR-R, LTR) (20 lb. Bond)
15 sheets LGL, 11" x 17" (20 lb. Bond)
Paper Weights: 14 lb. Bond to 28 lb. Bond (52 gsm to 105gsm)
Different Size Originals: Same width only
Dimensions (H x W x D): 6-1/2" x 22-7/8" x 19-7/8"
Cassette Feeding Unit- X1 (Optional)
Paper Capacity: 2 x 550 sheet cassettes (1,100 sheets @ 20 lb. Bond)
Paper Sizes: EXEC, STMT-R. LTR-R, LTR, LGL, 11" x 17" and 12" x 18"
Paper Weights: 17 lb. Bond to 110 lb. index
Power Source: 120V AC, 60 Hz, 15A
Dimensions (H x W x D): 12-1/4" x 24-3/8" x 27-3/4"
Paper Capacity: 2,700 sheets (20 lb. Bond)
Power Source: From the cassette feeding- Unit X1 or Plain Pedestal-C1
Dimensions (H x W x D): 17" x 12-3/4" x 23-1/4"
Paper Weights: 17 lb. Bond to 140 lb. Index
Paper Sizes: LTR, LTR-R, STMT-R, LGL
Top Tray: LTR, LTR-R, STMT-R: 1,000 sheets
LGL, 11" x 17", 12" x 18": 500 sheets
Staple Capacity: 30 sheets (LTR, LTR-R)
Staple Positions: Corner staple only
Power Source: From the Cassette Feeding Unit-X1 or Plain Pedestal-C1
Dimensions (H x W x D): 14-1/4" x 21-3/4" x 22-5/8" (362mm x 553mm x 574mm)
Paper Sizes: STMT-R, LTR,LTR-R, LGL, 11" x 17", 12" x 18"
Top Tray: STMT-R, LTR: 1,000 sheets
LTR-R, LGL, 11" x 17", 12 x 18 : 500 sheets
Staple Capacity: 50 sheets (LTR)
30 sheets (LTR-R, LGL, 11" x 17") (17 lb. to 20 lb. Bond)
Staple Positions: Corner and double stapling
Dimensions (H x W x D): 42" x 26-7/8" x 24-1/4"
Saddle Finisher- N2 (Optional)
Paper Sizes: STMT-R, LTR, LTR-R, LGL, 11" x 17", 12" x 18"
Number of Trays: 2 + Saddle Stitch Tray
LTR-R, LGL, 11" x 17", 12" x 18": 500 sheets
Saddle-Stitch Tray: 1 to 5 sheets: 25 sets
Super G3 Fax Board- M2 (Optional, Requires Resolution Switching Board- A2)
Applicable Line: Public Switched Telephone Network (PSTN)
Transmission Speed: ECM-MMR: Approx. 3.2 seconds
Maximum Memory: Approximately 3,700 pages
Color Network Multi-PDL Printer Kit- A2 (Optional)
Processor: Dual Canon Custom Processor 250MHz, Shared
Standard Memory: 1GB (Std./Max.), Shared
PDL Support: UFR, PCL 5c, PostScript 3 emulation, PDF R1.3
PostScript Fonts: 136 PostScript Fonts
PCL Fonts: 80 PCL Roman Fonts, 1 Bitmap, 32 Barcode
Interface Connections: 10/100 Base-T (RJ-45) (Standard)
Token Ring, USB Full-Speed (1.1 equivalent) (Optional)
Protocols Supported: IPX/SPX, TCP/IP, AppleTalk, SMB
Processor: Intel Mobile Pentium III 850MHz
Standard Memory: 128MB Standard
PDL Support: PCL 5c, Adobe PostScript 3
PCL Fonts: 113 PCL5c Roman Fonts
Interface Connections: 10/100 Base-T (RJ-45)
Protocols Supported: IPX/SPX, TCP/IP, AppleTalk
Processor: Intel Pentium 4 @ 2.4 GHz
Standard Memory: 256 MB SDRAM Standard
Maximum Memory: 512 MB Maximum
PDL Support: Adobe PostScript 3
PostScript Fonts: 136 Postscript Fonts .
