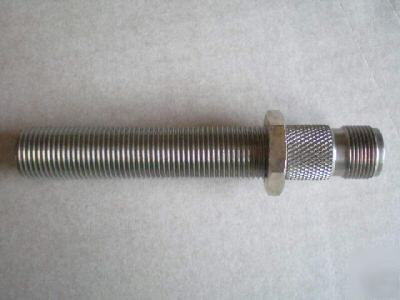

Stainless steel magnetic pickup 76MM/2-pin (item 148)
A compact and robust magnetic pickup fitted with 2-wire sensors that do not require an external power supply. They are used to sense the movement of a ferrous target, whereupon a voltage will be generated within the sensors coil. The amplitude of this voltage will depend on several factors, but primarily the target size, distance and speed. The induced signal produces a pulse train, the frequency of which may then be converted by instrumentation or interface equipment to rotational speed (e.g. rpm), or engineering units (e.g. flow rate).
5/8th x 18tpi UNF-2A (body thread)
