Oriental parallel shaft ac gearmotor 1/50 hp 115V 60HZ

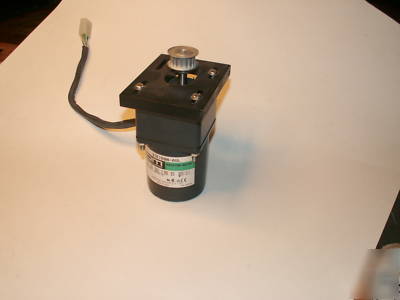

This is a lightly used AC induction gearmotor from Oriental Motors. The motor part number is 3IK15GN-AUL. The Gearhead part number is 3GN36KA. The motor runs @ 1500 RPM on 60 Hz @ 115 volts (330 mA) . The gearhead is 36:1, PN 3GN36KS. It can be run at 100 volts 50Hz also. It comes with an aluminum timing pulley and anodized aluminum mounting block. Leads are about 12 inches long.
