Nsk nakanishi E6040 series nc / cnc lathe complete set

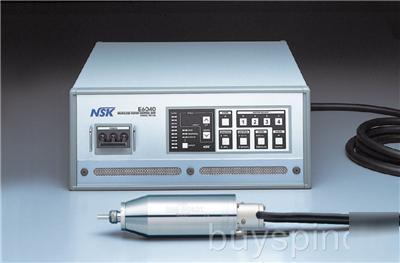

Nsk Nakanishi E6040 Series NC / CNC Lathe Complete Set
HIGH POWER SOLUTIONS E6040 SERIES ELECTRIC SYSTEM COMPLETE SET
Outside Diameter 2.36" ( 60 mm)
Up to 1/4" shank of tool can be used.
High-speed rotation, high-precision and high-power brushless DC motor/spindle of 2,000~40,000 min-1(rpm).
High-power 600W brushless DC motor spindle with an external diameter of 2.36"( 60 mm).
Maximum cutting tool shank diameter of 1/4"( 6.35 mm) can be used.
Ideal for use on special purpose machines, NC lathes, robots, etc. for small diameter end milling, drilling, slitting, chamfering, grinding, etc.
EMS-6040K has a great flexibility of motor cord which is suitted for robot attachment.
-EMS-6040K Brushless Motor Spindle; Motor Cord (EMCD-6040K) : 16 ft (ASE9082)
Intake Air Hose (K-250) : 6 mm x 16 ft Collet 1/4"(CHK-6.35) Collet Nut (CHN-B) : 1 pc. Wrench (12 x 14), (16 x 18) : 1 pc. each.
EMS6040K Brushless Motor Spindle Specifications
Motor Speed 2,000~40,000 min-1(rpm)
Air Coolant Hose Length 16 ft
Standard Size Collet (CHK-6.35) 1/4"
Collet Nut (CHN-B) For Collet (CHK)
Min. Bending Cord Radius R50 mm
2,000~40,000 min-1(rpm), 500 min-1(rpm) (for centering rotation)
Rated output 400W (Max. output 600W)
Spindle accuracy 1 m or less.
Achieved continuous run of over 5,000 hours.
{NAKANISHI's factory test without load at 40,000 min-1(rpm)}
Proper coolant air pressure 71PSI
Coolant air consumption 4.59CFM
Extremely low vibration brushless DC motor.
Utilizes a double pair of ultra-precision ceramic bearings to obtain high rigidity in both radial and thrust directions incorporates 2 ceramic bearings on the front side and 2 on the rear side.
External housing made of precision ground stainless steel SUS-416.
