#5A carlton 8' x 22" radial drill

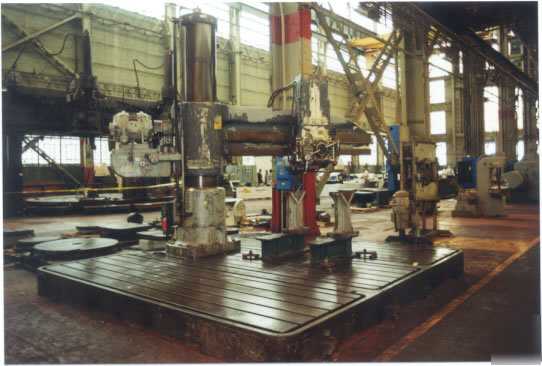

8' x 22" CARLTON Radial Drill, Model 5A, S/N 5A-1009 (New 1940)
Maximum/Minimum spindle radius
Maximum/Minimum distance, spindle to base
New, Never Used Spindle (installed 2002)
28-1/4" x 32-1/4" x 24" High CARLTON t-slotted tilting box table
Power elevation of arm on column
Power clamping of arm on column
10 H.P. 3/60/220-440 volt elevation motor
25 H.P. 3/60/220-440 volt AC spindle drive motor and electrical controls
Approximate Weight Including Box Table:
