100 lot philips nxp 74LVC02APW quad input nor gate

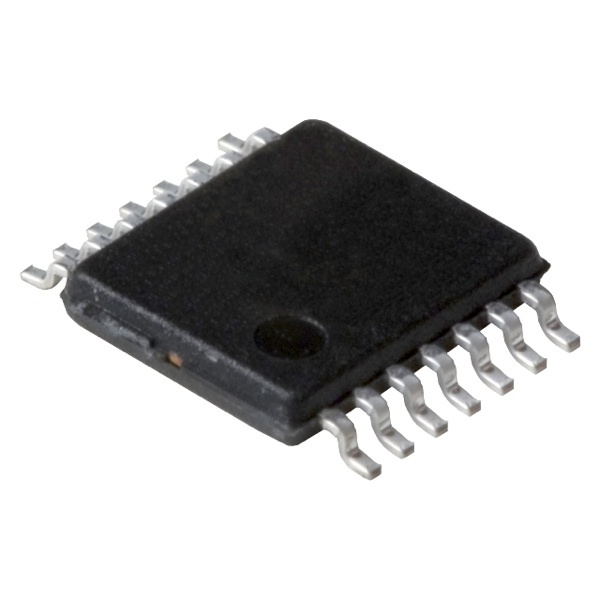

Philips NXP 74LVC02APW Quad Input NOR Gate
DescriptionThe 74LVC02A is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V and 5V environment. The 74LVC02A provides 2-input NOR function.
* 5V tolerant inputs for interfacing with 5V logic
* Wide supply voltage range from 1.2Vto3.6V
* CMOS low power consumption
* Direct interface with TTL levels
* Inputs accept voltages up to 5.5V
* Complies with JEDEC standard no. 8-1A
* HBM EIA/JESD22-A114-A exceeds 2000V.
* MM EIA/JESD22-A115-A exceeds 200V.
* Specified from 40 C to +85 C and 40 C to +125 C.
