Rodless air cylinder. 1" bore x 18 1/2" stroke
TOOL-O-MATIC #BC210#147265, CONFIG: BC210 SK18.5 FMS FL

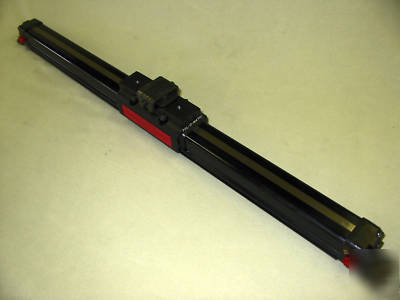

CYLINDER IS 28 3/8" OVER ALL LENGTH INCLUDING FOOT MOUNTING BRACKETS
FROM THE BOTTOM TO THE TOP OF THE MOUNTING PAD IT IS 2.3"

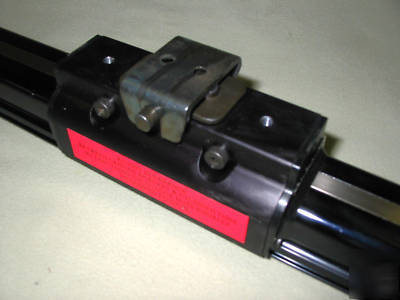

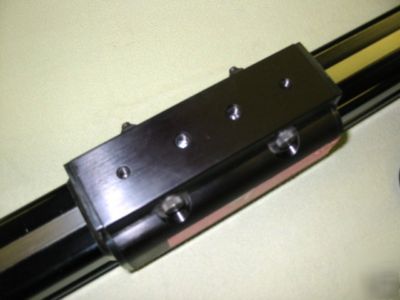

MOUNTING PAD ON THE SLIDE IS 1 5/16" X 4 1/2" WITH 2 - 1/4-20 HOLES AND 2 - #10 HOLES, ALSO HAS A PIVOT MOUNTING BRACKET THAT CAN BE REMOVED IF NEEDED, SEE PICTURE #2
