> New yuasa NP18-12B12V 17.2AH sealed lead acid battery

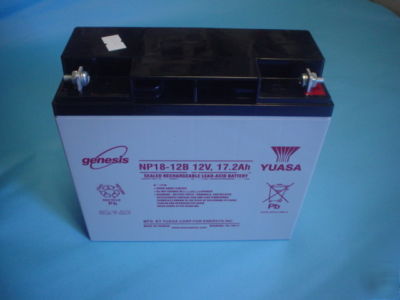

New yuasa NP18-12B12V 17.2AH sealed lead acid battery
Yuasa NP18-12B12V 17.2Ah Sealed Lead Acid Battery
20 hr. rate of 0.86A to 10.5V 17.2Ah
10 hr. rate of 1.6A to 10.5V 16.0Ah
5 hr. rate of 2.9A to 10.2V 14.5Ah
1 hr. rate of 10.3A to 9.60V 10.3Ah
WEIGHT (approx.): 13.70 pounds (6.2 kgs.)
ENERGY DENSITY (20 hr. rate): 1.47 WH/cubic inch (90 WH/liter)
SPECIFIC ENERGY (20 hr. rate): 15.1 WH/pound (33.28 WH/kg)
INTERNAL RESISTANCE OF CHARGED BATTERY: 11 milliohms (approx.)
MAXIMUM DISCHARGE CURRENT WITH STANDARD TERMINALS: 150 amperes
MAXIMUM SHORT-DURATION DISCHARGE CURRENT: 450 amperes
CHARGE RETENTION (shelf life) at 68 F (20 C):
