New * * unitech 3" ccd barcode scanner w/PS2/at kw

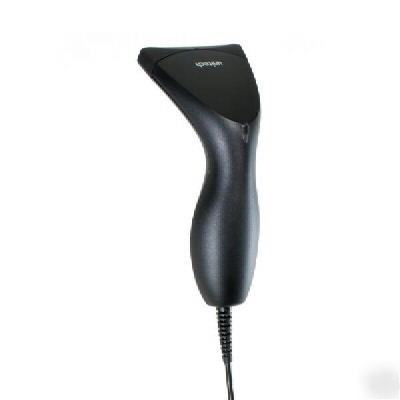

Unitech 3" CCD Barcode Scanner w/PS2/AT KW
MS210-K MS210-1 scanner with 1550-210435 universal AT & PS/2 interface cable
The MS210-1 flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets.
The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device.
Barcode menus provide extensive configuration options. The settings can then be cloned to other readers through the use of custom bar code labels.
The ergonomic design makes the scanning process easier and more comfortable. Aside from good looks, it is also rugged enough to withstand multiple six-feet drops to concrete.
45% absolute dark/light reflectance at 660 nm
4.4 oz. (125 g) without cable
Interchangeable with TTL, PS/2, AT, RS232, or USB cables
Preamble, postamble, code id, and reformatting data
PC, Macintosh, and IBM terminal keyboard
Scanner Configuration Manager software
-4 F to 140 F (-20 C to 60 C)
Withstands multiple 6 ft. (1.8 m) drops to concrete floor
CE approved - complies with FCC Class A
