Vehicular gate magnetic lock access control kit 1300 lb
You are purchasing 1 Vehicular Gate Access Magnetic Lock Kit With Weather Resistant Heavy Duty Keypad

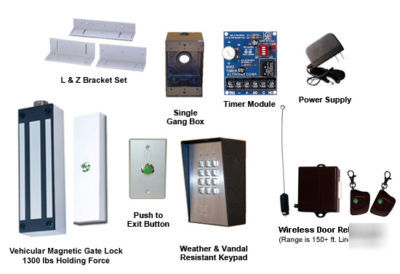

This kit is built for gate access control that contains the following components: 1- 1300GS Pedestrian Magnetic Gate Lock, 1 - KPX 100 Weather Resistant & Vandal Resistant Digital Keypad, 1 - Model PGBUTTON05G Heavy Duty Plate Push To Open Button, 1 - TSFAKIT433-1K Kit with Receiver and 2 Remote controls, 1 - 12v Power Supply 1500 mA, 1 Altronix 6062 Timer Module, 1 Single Gang (silver) Weather Resistant Outlet Box and 1- Model MAG-LZ600 L & Z Bracket Set for your Magnetic Lock.
Vehicular Gate Access Magnetic Lock Kit With Weather Resistant Heavy Duty Keypad
This kit is built for gate access control that contains the following components: 1- 1300GS Pedestrian Magnetic Gate Lock, 1 - KPX 100 Weather Resistant & Vandal Resistant Digital Keypad, 1 - Model PGBUTTON05G Heavy Duty Plate Push To Open Button, 1 - TSFAKIT433-1K Kit with Receiver and 2 Remote controls, 1 - 12v Power Supply 1500 mA, 1 Altronix 6062 Timer Module, 1 Single Gang (silver) Weather Resistant Outlet Box and 1- Model MAG-LZ600 L & Z Bracket Set for your Magnetic Lock
Model MAG-LZ600 L & Z Bracket Set
L & Z Brackets included (3 Pieces Total)
Minimizes the amount of welding
To be used with our 1300GS (1300 LB. Holding Force) Magnetic Locks for in-swing doors.
Weather & Vandal Resistant Digital Keypad:
The KPX 100 Digital Keypad is an affordable, solid built and well engineered access control keypad. This unit is designed to have great features similar to more expensive keypads.
* Illuminated keypad - Blue Back lit metal keys
* Multi user (Multiple codes 100 users - relay 1)
* Single user (One common code 100 users - relay 1)
* Inexpensive (less than $150.00)
* Anodized and powder coated steel outer housing that is vandal and weather resistant to IP66.
* Dual relay outputs. (Second relay used to tie the unit into an enunciator or doorbell to 10 users)
* Over 100 Million 4-8 digit codes.
* Key activation output (A 10 second output to gnd for each key touch enabling activation of lights, camera or buzzer to notify guard)
* Door Position Sensor (Input from Normaly Closed magnetic switch)
* Door Auto Re-lock (Prevents Tailgating)
* Door Forced Open Alarm (60 seconds output)
* Door Propped Open Alarm (Will sound after expiration of time period until door is closed)
* Interlock (Allows use of 2 keypads)
* Tamper Output (Tie into alarm system)
* Universal mounting options for mounting on wall, post or gooseneck stand.
* Red Lights up when relay output 2 is activated.
* Amber status indicator shows synchronization with internal pacifier tones.
* Green light up when relay output 1 is activated.
* Operational Voltage: 12V 24V AC/DC (No jumper selection required)
* Current Consumption: 15 mA standby to 100 mA two relays activated.
* Temperature: -4oF 158oF (-20oC - +70oC) Probe input circuitry protected by surge suppressors
* Humidity: 5.95% relative humidity non-condensing.
* Environmental: IP66 All weather.
* Dimensions: H=6.15in (156mm) x W=4.1in (103mm) x D=2.75in (70mm)
Anodized Steel with powder coat paint ABS (plastic)
Faceplate 1.5mm stainless steel
Key buttons Cast metal back-lit
* Weight: 2.2 lbs. (980g) net
Relay 1 100 user 5A @ 30VDC max. Normally Open / Common / Normally Closed
Relay 2 10 user 1A @ 30VDC max. Normally Open / Common / Normally Closed
Single gang (Silver) weather resistant outlet box for our light plate size request to exit push buttons. Push button in photo not included.
Single Gang Weatherproof Outlet / Push Button Box
Product Type- Single - Gang Boxes
Product Family- Weatherproof Boxes, Extensions and Adapters
Product Material- Die Cast Aluminum
Product Usage- 2" Deep, With Lugs - Four Threaded Outlets - 4 - 1/2" x 2 - 3/4" Outlets- 4-1/2" Color- Gray
PG This high visibility (green) push button, Model PGBUTTON05G provides a clearly visible means of actuating an electric locking device / release. Our easy to operate, request-to-exit controls are ideal for use in any facility with access controlled entry/exit.
Green button can be easily recognized
Width X Length = 2 6/8" X 4 1/2"
12 Volt 1500mA UL Listed Switching Power Supply. This transformer produces a consistent 12 Volt power supply for electronics.
* Input: 100-240V ~ 50/60Hz 0.7A
Altronix 6062 Timer Module 12/24VDC Operation
Altronix Model 6062 programmable timer is suitable for many functions that require a timed operation including Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer.
Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.
* 12 or 24VDC operation is selectable.
* Quick and extremely accurate time range adjustment from 1 sec. to 60 min.
* LED indicates relay is energized.
* Form "C" relay contacts are 8 AMP at 120VAC/28VDC.
* Current Draw: Stand-by 3mA, Relay Energized 40mA.
* Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
* Selectable relay activation at the start or end of the timing cycle.
* One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
* Built-in reset feature which cancels timing cycle.
* Repeat (pulser/flasher) mode.
* Snap Trac compatible (order Altronix model #ST3)
* DIN Rail Mount version available (order Altronix model #DTMR1).
* Board dimensions: 3"L x 2.5"W x .75"H
All Magnetic Locks Include Armature Plate & Mounting Hardware For Basic Out-swing Applications.
