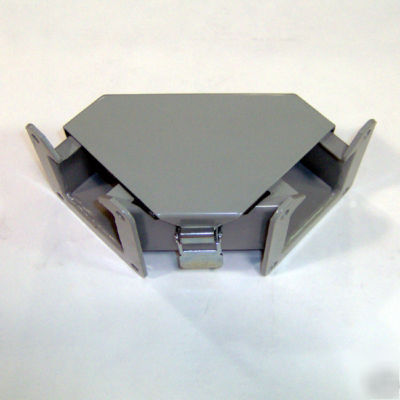

Hammond mfg. 1485 series lay-in wireway 90 deg. elbow
* Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
* All sections and fittings are completely open on each side to allow wires and cables to be placed into the wireway without pulling through .
* UL 870 Type 1 (unless marked1)
* CSA Type 1 (unless marked1)
* Bodies and covers are formed from 14-gauge steel with 10 gauge steel flanges.
* 12 x 6 size has a 12 gauge steel body with a 14-gauge cover.
* Smooth continuously welded seams.
* Interior surfaces are smooth to prevent wire damage during
* Butt hinged cover is secured with easily operated quick release clamps.
* Oil resistant gaskets are permanently secured.
* Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
* One gasket kit, complete with hardware is provided with each straight section or fitting.
* Sealing plate is supplied.
* Flange junctions are sealed with gasket sealing plates, which are put in place after wiring is completed. One is supplied with all straight sections and most fittings; see table for exact number.
* Sections and components are finished in ANSI 61 gray powder coating.
