H p preis pantograph engraving machine gorton style

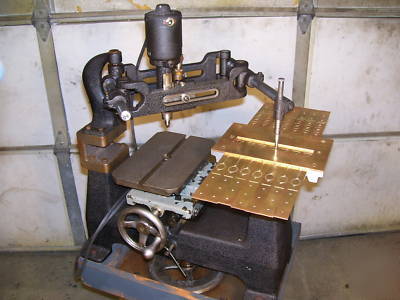

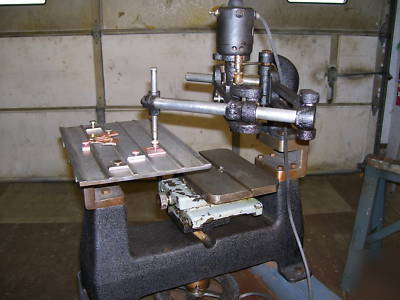

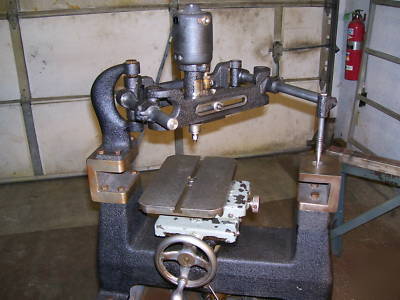

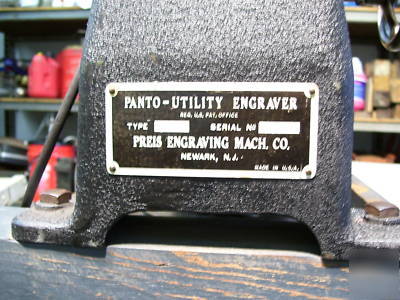

H.P. PREIS PANTO-UTILITY ENGRAVER. TYPE UE SERIAL # 499 PANTOGRAPH ENGRAVING MACHINE. RISERS HAVE BEEN
ADDED UNDER THE HEAD (3 1/2") AND THE COPY TABLE (3"). ALSO, A SMALL CROSS SLIDE TABLE HAS BEEN FITTED UNDER
THE WORK TABLE. THE "X" AND "Y" TRAVEL IS 2 1/4" x 2 1/2". THE ORIGINAL TABLE VERTICAL TRAVEL IS 3".

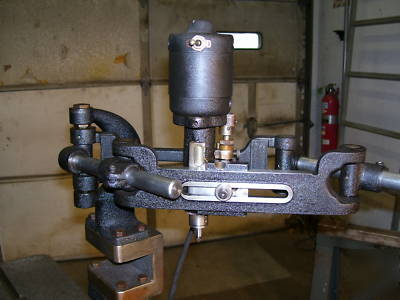

THE MANUAL SHOWS REDUCTION OF THE PANTOGRAPH FROM 1.6:1 THRU 5:1. IT APPEARS THAT AN ADDITIONAL HOLE ADDED TO THE SPINDLE BRACKET ALLOWS ABOUT 7:1.

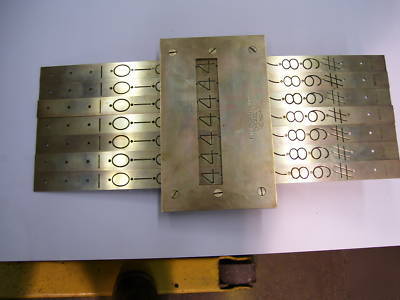

THE SERIAL NUMBERING & COPY STRIP ATTACHMENT SHOWS RITE ENGRAVING CO. CHICAGO, ILL. NO. 150-1-Z. IT HAS SEVEN SLIDING NUMBER STRIPS #150-2-Z WITH 16 INDEX HOLES.
THE NUMBERS ARE 3/4" WITH FRACTION BAR AND # SIGN AND ARE SUNK "V". THE NUMBER 2090 IS CAST IN THE BACK OF THE MOUNTING FLANGE. EACH STRIP IS 7/8" WIDE.

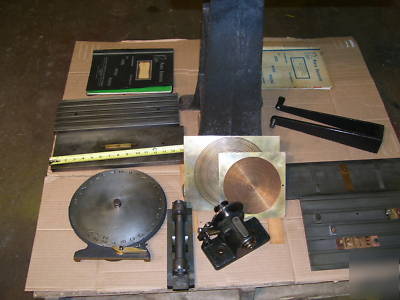

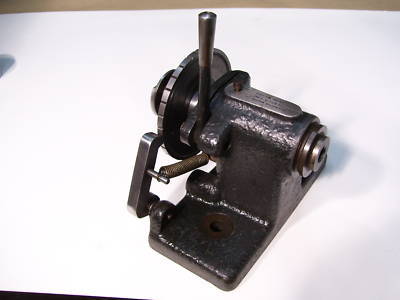

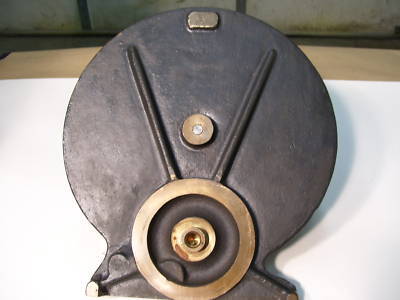

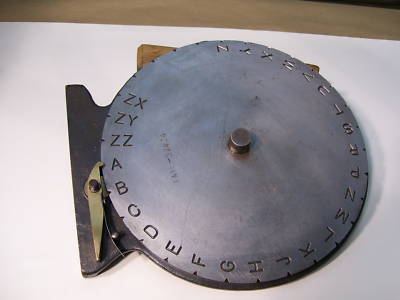

THE MASTER COPY DIAL 33-1 IS SOLID BRASS (14 lbs.) WITH 10" STEEL DIAL TAM-57424. THE LETTERS ARE 3/8" SUNK "V". THE INDEXING WORK HOLDER IS GORTON # 53-L WITH 30 INDEX.

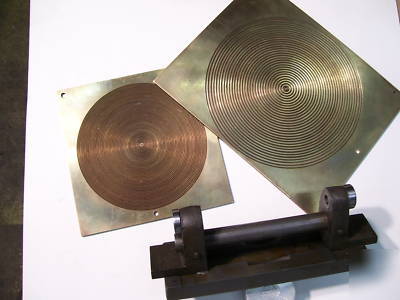

.THE IS ALSO A CYLINDER ROLLER ATTACHMENT, A 8" x 10" CIRCLE MASTER TEMPLATE, AND A 7" x 7" GORTON TOOL NO.
THE ATTACHMENTS HAVE A 7/8" PILOT, 1/2"-13 THREADS, AND 4 1/4" FLANGE SURFACE INCLUDING TWO OF THE FOUR FLAT PLATE HOLDERS.

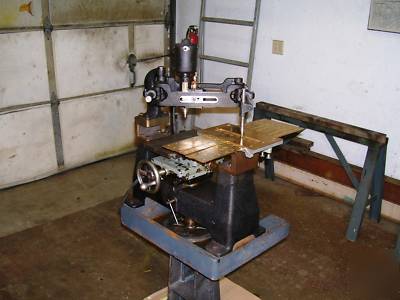

THIS MACHINE AND PIECES ARE VERY CLEAN AND APPEAR TO BE IN GOOD WORKING ORDER. IT CAN BE VIEWED AND OPERATED AT OUR FACILITY. THE SPINDLE MOTOR IS 110 V. 1/16 HP MODEL 1038. THE MACHINE IS MOUNTED ON A
PEDESTAL BASE, BUT CAN BE BENCH MOUNTED. OVERALL DIMENSIONS - 18" x 20" x 52"H. MACHINE MANUALS INCLUDED.
