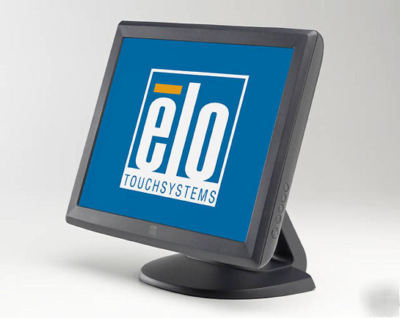

Elo 15A1 15" all in one lcd desktop touchcomputer
The 15A1 15" LCD all-in-one touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions that can meet the requirements of any systems integrator, OEM or value-added reseller. Retail-rugged, the 15A1 features a spill-resistant sealing, a stable tilt stand that is removable or reversible for wall mounting, a VESA mounting option, cables hidden from user view, and side controls with lockout for public use.
The silent, fanless design of the 15A1, and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.
Small integrated, all-in-one touchcomputer
* Saves space, with the same footprint as a standard 15" LCD display
* Combining processing with touchscreen to fit virtually anywhere
Silent, fanless Intel Celeron M design
* Can be installed and functional in any point-of-service environment
* Reliable operation in demanding environments
* 2X performance improvement over 1529L based on Passmark Benchmark
Available with IntelliTouch surface wave, AccuTouch five-wire resistive, Acoustic Pulse Recognition, or CarrollTouch infrared touch technology
Choice of touch technology to fit a wide range of applications
Resists dirt, dust & liquid intrusion
"Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting
* Flexible VESA mounting options configurable as a desktop or wall-mount
USB 2.0, serial and cash drawer connectivity
Flexibility to support both legacy and future POS peripherals
* Allows attachment of a second touch screen display for digital signage
* Scalar support for 800X600, 1024X768 and native 1280X1024 for running legacy applications
Sensible line of point-of-service options
Windows XP Professional or WEPOS operating system support
Increases software and peripheral choices offering versatility and compatibility
On-screen display controls located on the side rather than the front, plus lockout function
Minimizes accidental or intentional changes to the display's controls in a public access environment
Provides fast, effective, and convenient security in any public and/or point-of-service installation
Peace of mind that Elo touchcomputers will be available throughout all phases of project rollouts and when future spares are needed
Same sleek look and feel as our 1529 family of products
Minimum impact to existing installations
Dimensions vary with stand position and options selected
Intel GMA 900 up to 128MB 1 shared w/ DVMT
ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL
Microsoft Windows XP Professional Service Pack 2
Microsoft Windows Embedded for Point of Service (WEPOS)
2 x RS-232 serial (RJ45, 8 position)
COM2 is RS-232, RS-422 and RS-485 selectable
1 (of 4) port is 12V powered USB (1.5A) for POS peripherals
1 x cash drawer (RJ11, 6 position)
1 x PS/2 universal (default to keyboard compatibility)
1 x 2.5" 40 GB 2 SATA hard drive
Replaceable lithium battery backed up real time clock
USB magnetic stripe reader: 1 W max.
Total power drawn with all possible peripherals: 91 W max.
* USB magnetic stripe reader
Typical 40,000 hours to half brightness
UL/cUL (*recognized component), FCC, CE, VCCI, C-Tick, EN60950
Two-watt/channel speakers in display head
Controls (side): menu, up, down, select, power
Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
Languages: English, French, Italian, German, Spanish
Tilt, remove, reverse (wall mount)
Threaded holes on bottom of stand for secure mounting
1 Memory supports both system and video. Accessible system memory may be up to 128 MB less than the amount stated, depending on the video mode.
2 GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Vertical: 60 /55 or 115 total
Vacuum Fluorescent Display (VFD), 2 rows, 20 characters/row
5 x 7 dot matrix configuration, 9.5 mm height, 6.2 mm width, pixel addressable
3 to 50 inch/sec (7.6 to 127 cm/sec)
