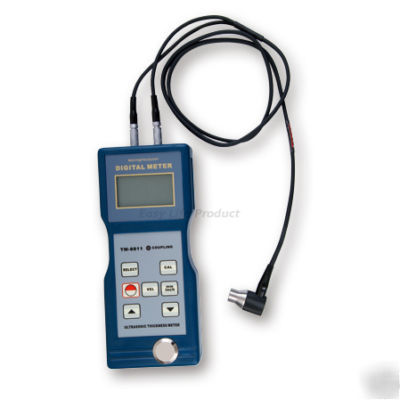

Digital ultrasonic thickness gauge meter 1.50~200 mm A0
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range and high resolution.
* With high power of emission and broad of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e.g. Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Automatic power off to conserve power
* Range : 1.5mm - 200 mm / 0.06 - 7.87 inch (45# steel)
* Resolution : 0.1 mm / 0.001 inch
* Accuracy : (0.5%n + 0.1)
* Sound velocity : 500 - 9000 m/s
* Metric / Imperial conversion
* Power supply : 4x 1.5V AA (UM-3) batteries (not included)
* Unit size : 160 x 68 x 32 mm (5.5 x 2.8 x 1.2 inch)
* Unit weight : approx. 208g (after batteries inserted)
* 1pc x thickness gauge (main unit)
* Package : Black imitation leather box with rigid rubber padding + standard factory box
* United States / Canada : US $29.99 per unit
* UK / Germany / France / Spain : US $34.99 per unit
