New rayco RG90 stump cutter,87 hp turbo,4WD, teeth,weship

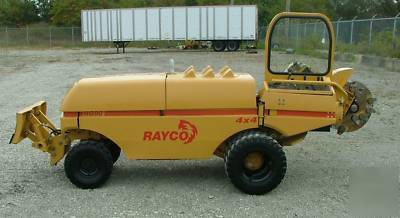

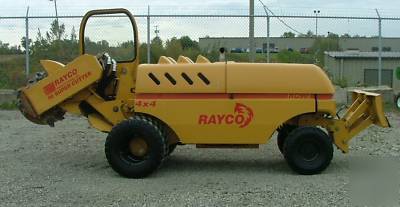

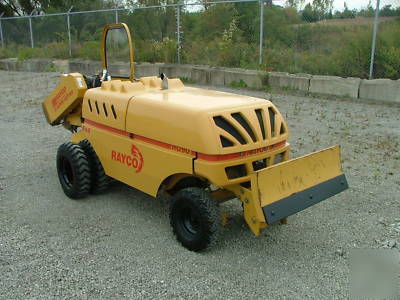

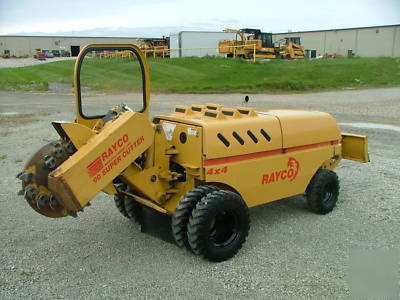

Rayco RG90 87 HP Turbo Diesel, Self Propelled, the most powerful stump cutter on the market that fits through a standard 36" gate, 4 Wheel Drive with two speed travel, hydraulic backfill blade, Fully Inspected and Job Ready, with New Teeth, Only used 1100 Hours
* Width 35" or 51" with optional dual wheel kit
* Ground clearance@ belly pan 8.5"
* Hitch-Front bumper for trailer hitch receiver
* Steering, Hydraulic steer axle, tie rod type
* Self Propell Drive, Hydraulic/Planetary wheel motor@ each rear wheel, Hydraulic geroller motor at each wheel
* Operator control console, mounted on swing away arm with protective window, full length rubber shield and fully covered valve bank
* Warning lights, engine oil pressure, engine oil temp, hyd oil temp,hyd oil vacumn, battery charging system
* Brakes, Rear-spring applied hyd release, Front-pilot operated counter balance valves
* Engine, Deutz Diesel Model BF4M2011, 4 cylinder, 190 Cu In, 87 HP, overhead valves,oil cooled, dry type air filter,
* Automatic protective shutdown, 10 second shut down on engine oil temperature, engine oil pressure,hydraulic oil temp, cutter wheel pump filter and alternator charge system
* Hydraulic system, gear wheel drive pump, Wheel drive motors axial 2 speed piston motor, control valve single spool monoblock finger tip control, spring centering w/neutral sensor and creep gate, speed control det rocker on dash, system pressure relief 3500 psi
* Cylinder system, cylinder pump gear type, control valve, 3 spool monoblock finger tip control, system relief 2500 psi, filter spin on, lift & swing cylinders 2.5" bore x 7.375 stroke, 1.125"rod,steer axle cylinder 2" bore x 4" stroke, .75" rod, Oil type Shell Tellus T46,Hydraulic reservoir 8 gallon
* Hydrostatic cutter system, cutter pump variable displacement axial piston, cutter motor fixed displacement axial piston, cutter pump displacement cable controlled w/ neutral start & operator console interlock, filter charge pressure filtration, 5800 psi pressure relief
* Cutting wheel-23" wheel diameter, thickness 1.5", bearings 1.75" dia double row spherical roller, cutting wheel hub QD bushing, speed 996 RPM, drive belt gates polychain GT low maintenance, cutting tools 24 Rayco Super Teeth, One piece belt guard
* Cutting Range- without repositioning, Below ground lever 20.5", above ground level 28.5", Cutting width 68"
We offer financing & leasing programs with our business partner Star Capital, call them to discuss your needs 1-(***)-994-3415 or apply online
Seller: Jim Goodall Equipment Sales, 16331 Old US 41, Ft Myers, FL USA 33912, 38 Years Experience in the Forestry & Construction Equipment Industry. Former Sales Manager for Husqvarna
