Fluke thermal camera flk-TI45FT flir infrared TI45
This is the more expensive Ti45FT model

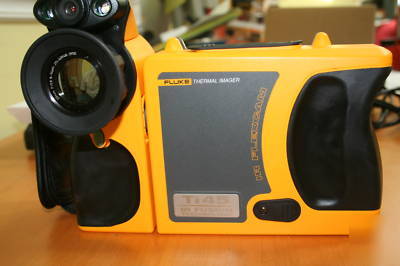

Fluke Ti45FT-20 Infrared Camera
Detector Size: 160 X 120, IR-Fusion, -20C(-4F) to +600C (1112F)
Excellent Thermal Sensitivity!
The Fluke Ti45FT Thermal Imager is a great camera for building diagnostic applications and electrical and mechanical infrared inspections. It includes the innovative IR-Fusion Technology to assist you to better pinpoint building or maintenance problems. IR-Fusion captures both a visual (or visible light) image and an infrared image and fuses them together - doesn't just overlay the image. It aligns the two on the camera for a more accurate view at any distance.
Use the Fluke Ti45FT thermal imager for these and other types of applications:
* Detect wet insulation in flat-roof systems quickly and efficiently. Find damaged portions of the roofing structure and repair or replace before the entire roof is contaminated.
* Perform infrared energy audits for residential and commercial applications. Increase the thermal efficiency of a home or building by scanning for thermal heat loss and cool infiltration or exfiltration , moisture invasion, concrete integrity and heat ventilation problems.
* Accurately detect moisture issues located behind exterior and interior walls, in ceilings or under carpet-covered floors.
* Control mold by finding unknown sources of moisture that would otherwise go undetected. Infrared scanning is the fastest most efficient way to provide 100% moisture detection coverage
* Look for loose electrical connections, electrical load problems, overloads, over-heating components, and other issues in electrical systems.
* Inspect motors, pumps, air-conditioning and heating equipment, compressors, bearings, and other equipment for hot spots that show possible problems.

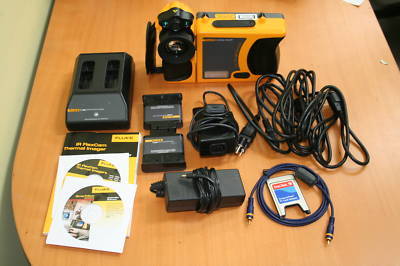

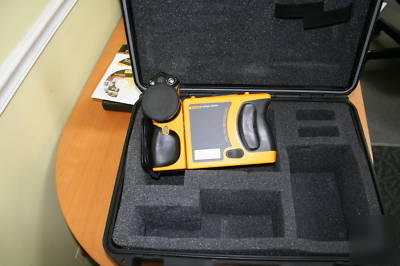

* Heavy-duty, padded carrying case
* 2 rechargeable Lithium-ion battery packs
* 1GB compact flash memory card
* Compact flash card reader with USB cable
* SmartView reporting and analysis software on CD, with free upgrades from Fluke!
(This software is easy to use, and creates excellent reports!)
0.08 C at 30 C (80mK) - Ti45
Smart Focus: one finger continuous focus
-20 C to 600 C (-4 F to 1112 F)
Centerpoint, center box (area min/max, average), moveable spots/boxes, user defined field/text annotations, isotherms, automatic hot and cold point detection, visible color alarm above and below
RS170 EIA/NTSC or CCIR/PAL composite video
Grayscale, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber inverted
> 1000 IR images on compact flash card (1 GB) Flash Memory
Yes - Telephoto and Wide Angle (NOT included)
-10 C to +50 C (14 F to 122 F)
-40 C to +70 C (-40 C to 158 F)
Operating and storage 10% to 95%, non-condensing
162 x 262 x 101 mm (6.5" x 10.5" x 4.0")
