Fabco EZ1000-12.0-MH1-d-J74B-RC02AB air linear slide

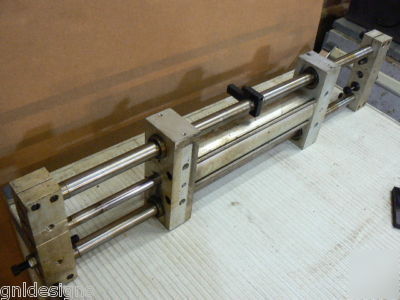

Fabco EZ1000-12.0-MH1-D-J74B-RC02AB Air Linear Slide !!

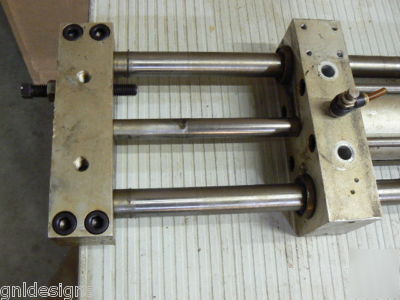

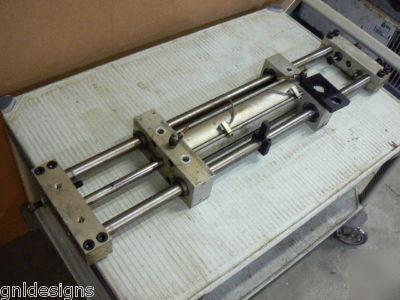

* Fabco EZ1000-12.0-MH1-D-J74B-RC02AB Air Linear Slide
* EZ1000: model size 1000, 1" guide shaft diameter, 2-1/2" bore
* 12.0" stroke (adjustable down to 0" by moving the ends in from the extreme ends, I actually measure 14" stroke maximum if the shock and stops are either removed or backed all the way out)

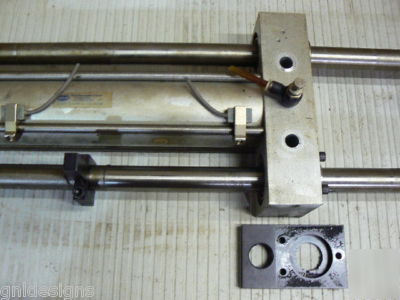

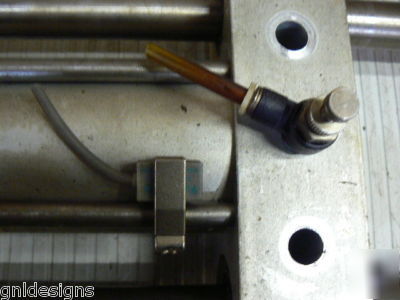

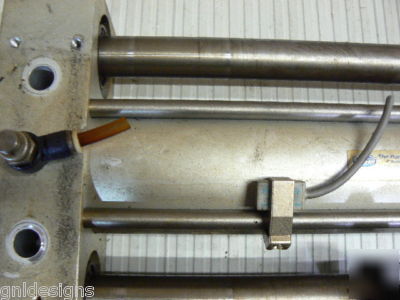

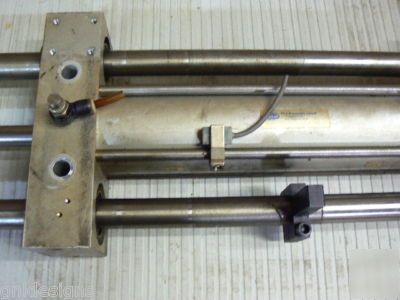

* J74B: Magnetic position and clamp-on sensors on both extend and retract (with short leads)

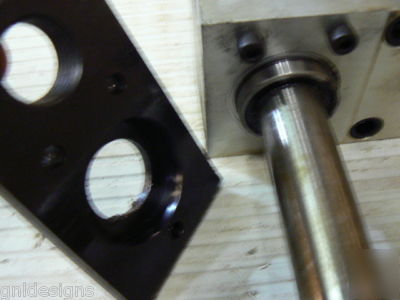

* RC: Rear clampbar (I'm not sure that part is still there, so take a look at the pictures and the catalog accessed through the link above)
* 02: Threaded rod with retract flange nut and an extend stop bolt

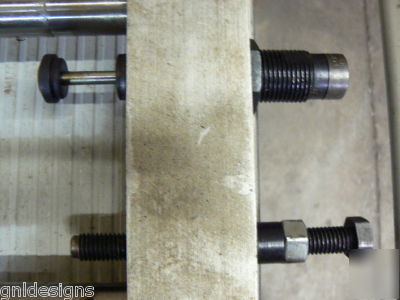

* AB: Ace shocks, standard location

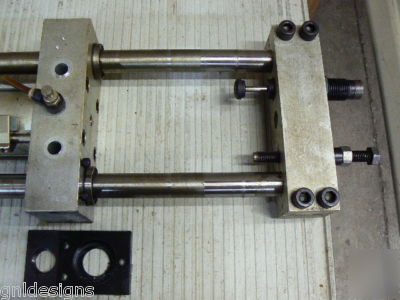

* I removed a shock mounting bar before I realized what it was for, but it is included and the bolts are in the holes. The shock that mounted in that bar is missing from this unit (the other one is still with the unit as shown).
* Removed from a working machine. Unit was in working condition when removed from service and it seems to be fine, with air moving through the fittings and it showing resistance when I plug those fittings and try to move the slide. I expect it to work fine. Minor cosmetic marks and oily residue from prior use in a machine tool plant.
