Detex ecl-230D alarmed exit control lock - $167.00

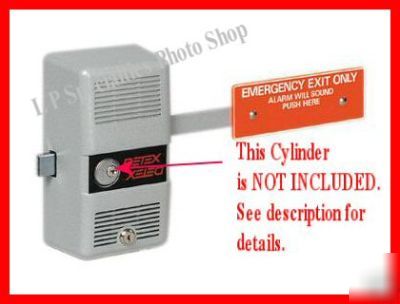

Detex ECL-230D Alarmed Exit Control Lock NIB - $167.00
This is the Basic Factory Packaged Exit Control Lock
* ECL-230D Exit Control basic lock complete with all fasteners
It is U.L. listed panic hardware and meets ADA requirements. This means that you will get no hassles from your building inspector. Application of this door hardware is designed for out-swinging exit doors. This unit is not fire rated for use on labeled fire doors. For fire rated door applications you need to look at the model ECL-600 (See it and get it here). This lock has an additional latch to meet the self latching code requirements.
The lock is mounted on the surface of the door and the strike is normally mounted on the surface of the door frame on the soffit portion of a steel frame. So you don't have to have any special holes in your door or frame. This lock can also be mounted on a narrow stile aluminum and glass storefront door with the stile dimension as narrow as 1-3/4", not including the glass stop. An additional item is required for this application to cover the back side of the lock that would be seen through the glass and protects the glass with two rubber spacers. The item number for the decorative back plate is ECL-475K. (write down that number if you think you may want it.) It is listed in our store and sold separately. You can view it and get it here.
An additional item that is recommended is the "Bar Guard Kit"...
This lock requires a key cylinder commonly referred to as a "rim cylinder" by the trade and...if you don't already have one you will need one and you can get one in my store...
See the photos included below. They show the Cam Bridge Assembly with the cylinder installed properly.
Cam bridge assembly with the cylinder installed
[Photos of cam bridge assembly with cylinder installed - front and rear and cylinder to show the cylinder tail piece before cutting to proper length]
Many business owners have special keying systems and the manufacturer of the key system can supply a matching rim cylinder for this lock.
In addition, outside entry is possible by simply adding one more rim cylinder and a pull handle to the exterior of the door. The lock is pre-designed for outside key control and all the parts are in the lock body as it comes in the box. The only extra requirement is that you must add an additional rim cylinder and mount it in your door. The mounting template is also clearly marked for locating the function (through the door) hole for the exterior cylinder. The hole diameter through the door, if you are using our cylinder, is 1-1/4". Now you'll be able to come in quickly from your back parking lot when it's raining. (One small point - outside key control won't work on a glass and aluminum storefront entry door and is not one of your options for that type of installation, sorry.)
Also Note: A toll free telephone number for assistance is included in the box should you need a little help while installing your lock.
Please contact us directly for other special services that you may require. We will accommodate every request if we can do so. "The difficult we do tomorrow, the impossible takes a little longer" is the motto that we try to live by.
Due to the price and nature of most of the products that we offer for sale, if the original factory product packaging (not the over pack box) is opened we will not accept returns EXCEPT FOR FACTORY DEFECTIVE MATERIAL. We will always gladly repair or replace factory defective or non working merchandise, after our inspection, in compliance with all factory warranties.
Our commercial door products offerings vary considerably from low cost residential door products purchased from a local hardware or building supply and we ask that you understand fully and exactly what you are purchasing. This especially applies to commercial electronic door hardware and alarms which is one of our major offerings.
You will find a card in each over-pack box along with our packing list that will have our toll free telephone number and contact name in clear view and where it can be easily found. In the event that you have a problem PLEASE call us as soon as you can during our normal business hours. (M-F 8:00 AM to 4:30 PM EST)...
...Tell us your problem and we'll handle the correction for you as fast as humanly possible.
We want you to be happy with your purchase and will go to extreme and reasonable lengths to be sure that you are satisfied.
You will get great service and honest and correct answers regarding all your door hardware needs. Our staff consists of people who have all been directly in the door hardware business for a minimum of 20 years each and some for longer...those longer ones won't admit to the exact number of years! Rest assured that if you have questions we have the correct answers!
You'll also find one of the largest inventories of commercial galvanized door lite kits and door louvers in the USA. Our normal stock for both door lite kits and door louvers is galvanized. We have found that, over the years, supplying a high quality product at the right price is in everyone's best interest.
