Linear power amplifier 900 mhz "mint condition"
Original Owner: This equipment is guaranteed to be in working order (800 MHz to 1000 MHz).
********** This amplifier was kept as spare and was never used **********

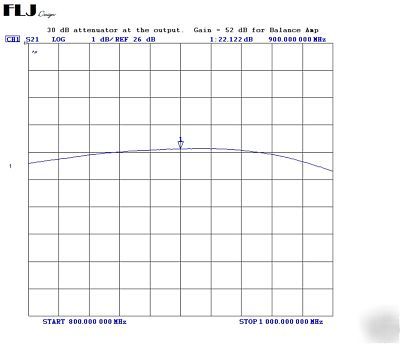

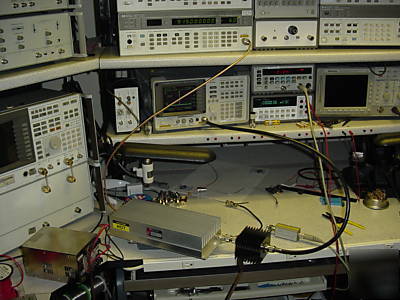

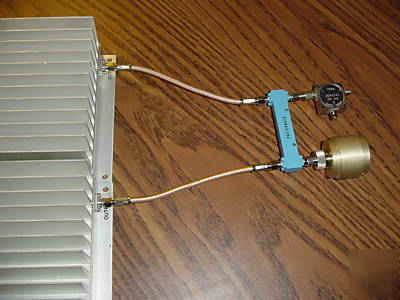

Gain is 52 dB. See picture for Gain and 1 dB compression point setup (measured with 30 dB PAD). Two plots are attached; one plot shows the frequency response (scale is 1 dB/div) without the TRAK isolator and the other plot shows with isolator installed directly at each output of amplifier before the quadrature combiner, this setup is for maximum mismatch protection at the output.
The 4 coaxial cables are included.
