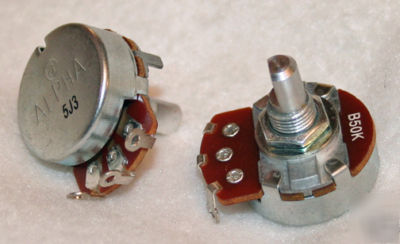

2 panel mount 50K ohm potentiomer RV24AF-10-15F-B50K
2 Panel Mount Potentiometer 50 K Ohms
Each is supplied with one hex nut and one flat washer.
We Have Knobs (part # 45KN017-GRX) To Fit These Pots?
Learn About Hydrogen On Demand
HAVE QUESTIONS? (***)-756-7050 or Click To Email
Total rotation angle 300 5
Rotational torque: 20~200 g-cm
Rated wattage: Linear taper-1/2W, Audio taper-1/4W
Rated voltage: Linear taper-500VDC, Audio taper-250VDC
Insulation resistance: >100M (500VDC)
Withstanding voltage: 500VAC for 1 minute
Resistance tolerance: <1M: 20%, 1M: 30%
