Ruvo 500 pre hung door machining station, 1980's, 3PH

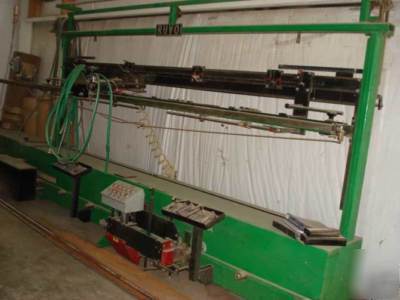

Ruvo 500 Pre Hung Door Machining station
* Multiple 208-230/460, 3PH motors
* The Ruvo 500 is a machine designed for residential, commercial and architectural door manufacturing where flexibility is important. The machine can process interior and exterior doors.
* This machine can machine door or door and hinge jamb.
* The cylinder lock/deadbolt and latch drilling is automatic.
* The machine has a power feed sizer/beveler with air routers to ease corners. It will allow straight or beveled hinge style.
* Hinge and faceplate mortise templates are built-in and mortising is manual.
* Hinge locations are infinitely adjustable and allow for up to (4) hinges.
* Capacity of the machine is 6'6" to 9' door height, width 1'6" to 4', thickness 1 3/8" to 2 1/4" thick, hinge sizes 3 1/2" to 5" with a 1/4" or 5/8" radius, jamb width 1 1/4" to 10" and up 9' in length, lock backset to 5" beveled or straight stiles, lock backset to 5", and latchplate 1 1/4" to 8".
