Okk model hm-4 cnc horizontal machining center 2000 hmc

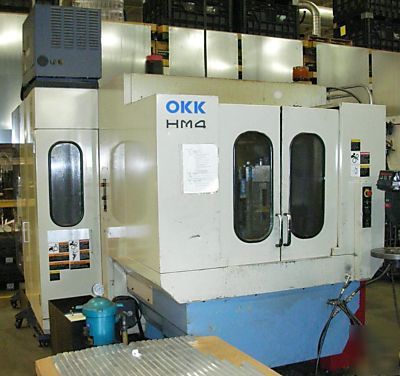

(1) Used OKK Model HM-4 CNC Horizontal Machining Center, 2000
Spindle Center to Pallet Surface 3.15 - 23.23
Spindle Gage Line to Pallet Center 5.91 - 27.95
Maximum Load on Pallet 881 LBS
Spindle Ranges, Automatic Selection Direct Drive
Spindle Speed Range 100 - 12,000 RPM
Spindle Drive Motor AC 30/25/20 HP (15 Min/30 Min/Continuous)
Spindle Torque Maximum (15 Min) 110.5 FT LBS
Rapid Traverse Rate - X, Y, & Z-Axes 1575 IPM
Feed Rate Range 0.04 - 1575 IPM
Automatic Toolchanger Capacity 40 ATC
Approx. Machine Weight 18,000 LBS
Approx. Machine Dimensions 7 x 13.1 x 9.2
Coolant Thru Spindle Interface
***New Spindle Replaced July 2008***
Click on or paste the link below to see an under power video:
http:// /watch?v=Ey6p5hETBsI
