K&e optical micrometer 71-1111 brunson keuffel & esser

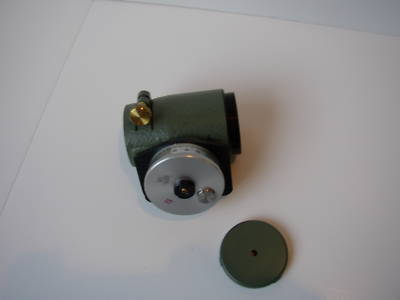

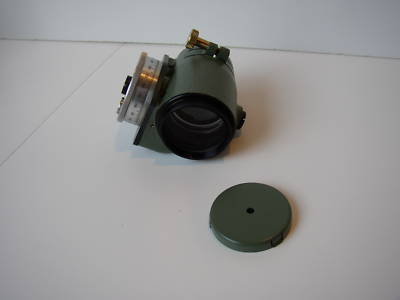

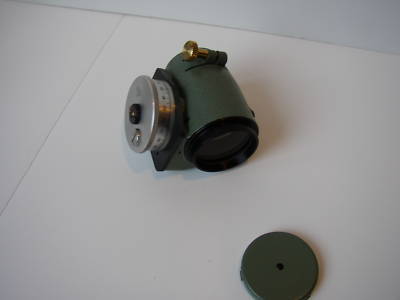

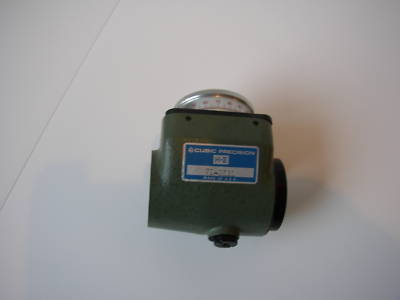

K&E 71-1111 Optical Micrometer
The micrometer measures horizontal or vertical displacement from a line of sight. Its range is +/- 0.100 inch. Has uniformly graduated, red and black main scale reading directly to 0.001 inch. Vernier scale reads to 0.0001 inch. Has a split clamp for mounting. Can be adjusted and calibrated without removal from instrument telescope.
Adapters available to fit most Theodolites: Wild, Leica, Kern
Fits K&E 71-3010, 71-3015 Precision Levels and Jig Transits 71-1010, 71-1012, 71-1013, 71-1014, 71-1026
Unit is calibrated and is in perfect condition.
