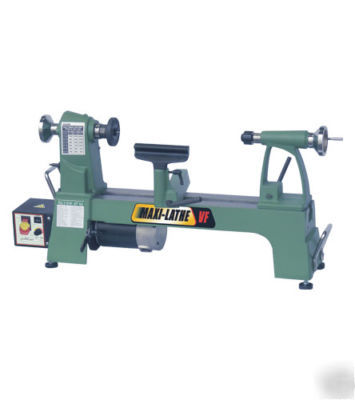

General int 25-114 M1 variable speed “maxi-lathe vf”


VARIABLE SPEED MAXI-LATHE VF
Forward or reverse spindle rotation selector switch for precision workpiece sanding and polishing.
Quick lock control levers easily position tool-rest.
Stable cast-iron frame, head and tailstock to reduce chatter and vibration for smoother turning.
Maximum distance of 17 between centers.
Maximum distance of 40 between centers with optional bed extension (Item #25-116).
Quick release lever for quick belt positioning changes.
3 variable speed ranges; 250-800, 550-1700 & 1200-3600 RPM.
Features positive indexing in 15 increments total 24 indexing positions.
Heavy-duty 1 diameter tool rest post.
