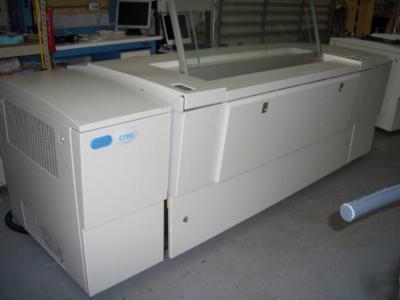

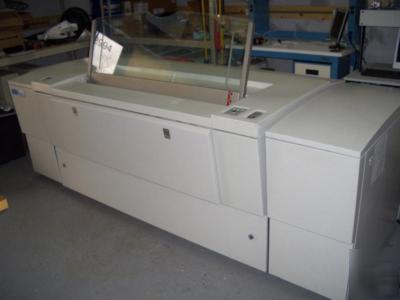

Creo ctp trendsetter 3244F, 40W laser 100 hours, YR1999
TRENDSETTER 3244F in excellent condition with warranty.
The Trendsetter 3244F is a semiautomatic platesetter that uses Creo SQUAREspot thermal imaging technology to expose plates for conventional and waterless printing.
SQUAREspot thermal imaging head 2400 dpi
Additional imaging speed option available
Semiautomatic media loading and unloading
Creo Staccato FM screening included with Brisque , Prinergy , and Prinergy Evo workflows (Staccato 20)
SQUAREspot thermal imaging head:
Around-drum circumference: 838 mm (33 in.) maximum, 394 mm (15.5 in.) minimum
Along-drum axis: 1143 mm (45 in.) maximum, 330 mm (13 in.) minimum
Thermal IR-sensitive aluminum plate and film, 830 nm
See the individual media specifications for a list of qualified media.
Media thickness 0.15 mm to 0.40 mm (0.006 in. to 0.016 in.) for plates
Non-imaged areas 6.1 mm (0.24 in.) along leading edge and 7.6 mm (0.30 in.) along trailing edge
Resolution: 2400 or 1200 dpi
Maximum recommended line screen: 450 lpi
Staccato screening: Staccato 10 and 20 Series option available
Media edge registered horizontally to pins mounted on drum
Vertical edge located with precise optical sensing
Image size is adjusted automatically to compensate for plate thermal expansion and contraction.
Automatic clamping Adjusts to any plate size (within the maximum and minimum allowed)
(3) 5 microns ( 0.2 mil) between two consecutive exposures on the same plate (at largest plate size and over full temperature range)
20 microns ( 0.8 mil) between two plates imaged by different Trendsetters (at largest plate size and over full temperature range)
We speak English, Spanish and Portuguese
Contact us: / email: ****@arcosys.com / phone: (***) 677-3867
