10,000 lb compression digital load cell scale

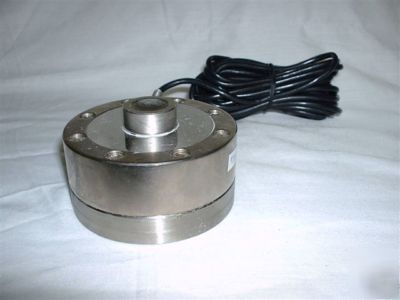

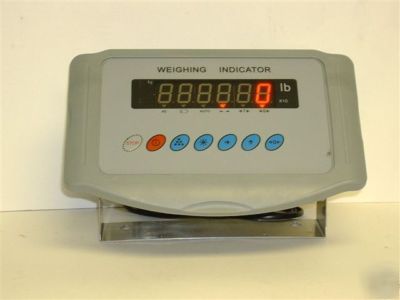

CLC-10,000 lb x 2.0 lb Capacity Compression Scale with Remote Indicator
Rated output......................................4mV/V 0.25%
Non-linearity............................................0.03%FSO
Hysteresis...............................................0.05%FSO
Non-repeatability......................................0.02%FSO
Creep in 20minutes...................................0.03%FSO
Temperature effect span..................0.015%FSO/10 C
Temperature effect zero...................0.026%FSO/10 C
Compensated temperature range..............-10 C~40 C
Operating temperature range ..................-40 C~80 C
Zero balance..................................................... 1%
Input resistance...................................385 30 Ohms
Output resistance..................................350 3 Ohms
Safe overload..................................................150%
Ultimate overload.............................................300%
Excitation voltage..........................................10VDC
Maximum excitation voltage ..........................15VDC
Insulation resistance......................>2000 Meg-Ohms
Environmental protection...................................IP67
Cable length.....................................................15ft
