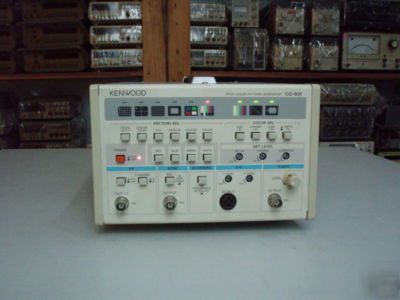

Kenwood CG931 ntsc color pattern generator
The CG-931 (NTSC) and CG-932 (PAL) are color pattern generators for the NTSC and PAL color systems, respectively. In addition to the split-field color bar required for the adjustment and inspection of video equipment and color TVs, they are provided with a variety of standard pattern signals including the dot, cross-hatching, center-cross and window patterns as well as blue, green, red and white color raster patterns. With S-output provided as standard? they are indispensable equipment for the new multimedia era.
CG-931: NTSC Color Pattern Generator in compliance with EIA (RS-189A) and SMPTE
The CG-931 can output color-bar signals in compliance with both RS-189A and ECR-1-1978 standards. In addition to the field color bar signals, it can provide patterns including I/Q/W ON/OFF switching, color bar signals without luminance component and gray scale signals without chrominance component instantaneously.
