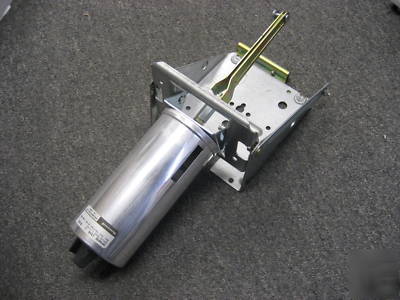

Honeywell MP909E1349 pneumatic damper actuator
Damper Actuator, Actuator force: Medium, Spring Range: 3 to 13 psi.
These actuators are used for proportional control of variable volume terminal units, mixing boxes, and small to medium sized dampers. They are available in various operating ranges for either independent operation or sequence operation with other actuators.
Close tolerance on operating range and stroke.
Non-overlapping spring ranges for sequencing.
Corrosion resistant materials.
Damper Actuator, Actuator force: Medium, Spring Range 3 psi to 13 psi
Diaphragm Effective Area (sq in.)
Diaphragm Effective Area (sq cm)
Dual Barbed fitting for 5/32 in. or 1/4 in. O.D. tubing
17 in. long x 6 3/8 in. high x 6 7/8 in. wide
432 mm long x 162 mm high x 175 mm wide
Internal N.C. trunnion mounting bracket
Components Recognized: Report R18118
