Donaldson torit model 84 baghouse dust collector

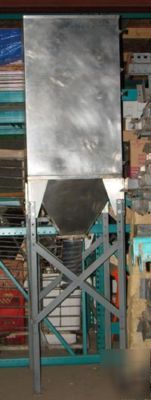

Donaldson Torit Model 84 Cabinet Industrial Dust Collector
serial number 203437 A new replacement of this unit has a list price of about $11,000.00.
230/460 volt, 3 phase, 60 cycle The exhaust fan is run by a 3 HP motor. Another motor runs the shaker. Manufactured in 1986, however, as of 11-08, the factory still has all the replacement parts available for this unit.
During normal operation, dust -laden air enters the unit through the dirty air inlet and passes through the unit where the dust collects on the outside surface of the EZ Filter Pack. The filtered air flows up through the center of the the filters and into the clean-air chamber. Clean filtered air discharges through the clean-air outlet located on top of the cabinet.
This is a bag house type dust collector. Actual filter area is 150sq. ft
EZ Filter Pack- envelope style filters designed for quick easy installation and replacement without use of special tools. Filters are cleaned using the optional electric filter shaker.
Stainless Steel construction on a stand
Dimensions with stand: 28.46" W x 30.46" deep x 111 1/2"H
Cabinet dimensions: 61.27"H x 28.46 W x 30.46"deep
Electrical: 208V, 220/240V, 3 phase, 60Hz, 7.8amps RPM 3450
Operating manual comes with unit.
