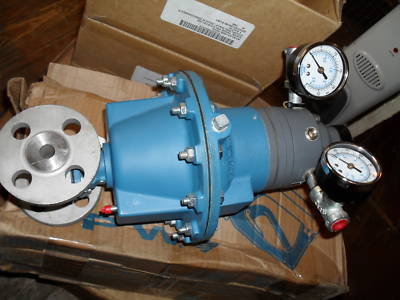

Control valve posistioner air motor actuator & dia-flo

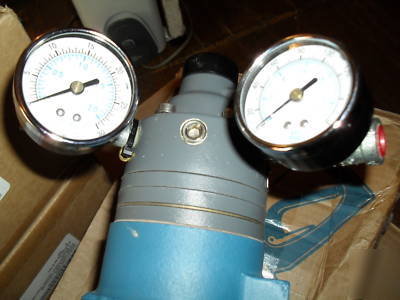

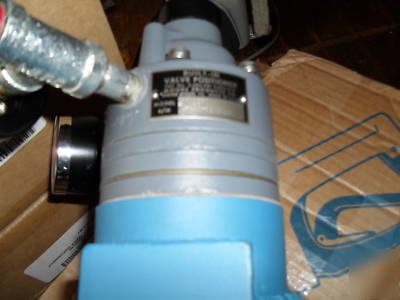

Moore Products Control Valve Positioner Built-in
Instrument Input Pressure Range...................3-15, 3-9, 9-15, and 3-27 psig
Supply Pressure Minimum................................................3 psi above required actuator pressure
Maximum...............................................100 psi
Air Consumption ...........................................0.25 SCFM (in balance condition with 20 psi supply and 9 psi dead ended output)
Valve Travel Minimum................................................1/4"
Maximum...............................................4"
Ambient Temperature Limits ........................-40 C to +82 C (-40 F to +180 F)

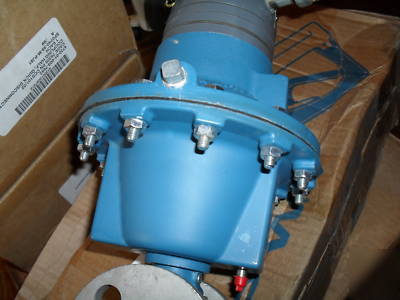

ITT Engineered Valve No. 12 Air Motor Actuator

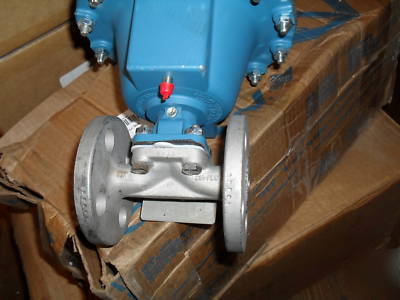

ITT Engineered Valve Dia-Flo CWP200
