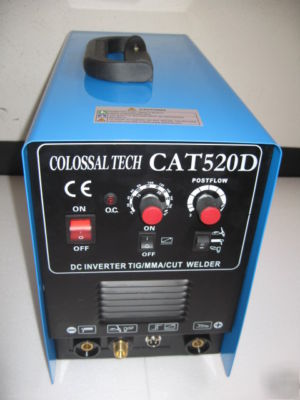

Cat-520D, 50A plasma cutter & 200A tig/ arc welder mma
50A Plasma Cutter 200A Tig Stick Welder
Three functions in one machine,
Air Plasma Cutter at a great price
208/220vac 50/60HZ Input Single Phase 1PH110/120vac 50/60HZ Input Single Phase 1PH50amp cut draws 25A
250V No Load Voltage, 100-115V Working Voltage
Plasma Cutting:3" Per minute @ 1" Steel (Severance Cut)7" Per minute @ 3/4" Thick Steel17" Per minute @ 1/2" Quality Cut Power Factor 0.93100% Duty cycle (cut time) at 40amp cut setting
60% Duty cycle at 50amp cut setting Air requirements: 50-75psi @ 3.5cfm
You will have to provide 110V or 220V Plug and air supply. Unit Contains Toshiba Mosfets
* CAT520D DUAL VOLTAGE 110V/220V, 50A Plasma Cutter 200A Tig Stick Welder
