Agilent (hp) 8762A coaxial switch 4GHZ 50OHM opt 11

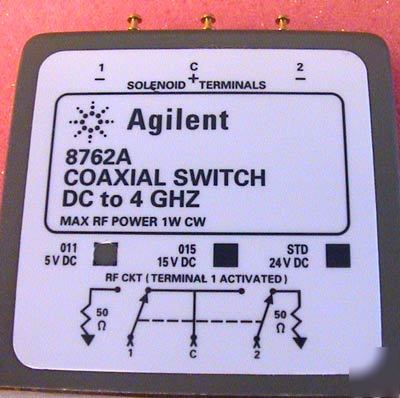

Agilent (HP) 8762A Coaxial Switch
DC to 4 GHz 50 ohm w/Option 11
Sealed New In Box With Factory Calibration Data
Maximum power rating - 1 watt average & 100 watt peak (Not to exceed average power rating)
Option 011 = 5 Volt Nominal Switch Voltage
Terminated single pole double throw switch has internal 50-ohm terminations
Insertion loss: < 0.2 dB to 2 GHz, < 0.25 dB to 4 GHz
Position indication capability
This switch is Sealed New In Box With Factory Calibration Data.
