Pentax total station R315EX surveying
This total station is in pristine condition
An excellent opportunity to acquire an easy to use and highly accurate total station
Here some details and specifications:
* Memory capacity of 16,000 points
* Fast initial measurement time to prism/reflector sheet of 1.2 seconds
* EDM accuracy of (2+2ppm)
* Full Alphanumeric Keyboard
* Waterproof and Dustproof to IP56
* Standard Camcorder Battery
* Powerful PowerTopo Lite (PTL) On-Board Software with COGO capability
PowerTopo Lite (PTL) On-Board Software has many powerful and useful features for various survey and construction applications. The PTL On-Board Software includes the following functions: Coodinate measurement, Coordinate Stakeout and Point-to-Line Stakeout, Free Stationing, COGO (Inverse, Point Coordinate, Line to Line, Circle Radius, Line-Arc Intersection, Arc-Arc Intersection, Distance-Offset, Point-Distance Offset, Arc-Distance Offset), RDM (Remote Distance Measurement) and REM (Remote Elevation Measurement), VPM (Virtual Plane Measurement), Traverse Program, 2D Surface and Area Calculation, 3D Surface and Volume Calculation

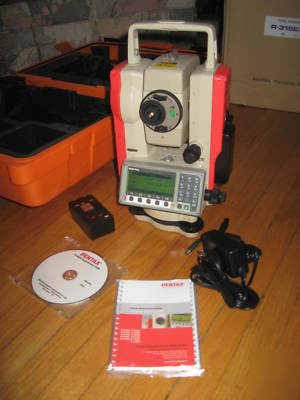

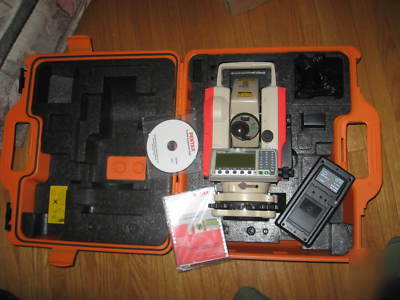

The R315EX Total Station includes:
* R- 300X supplement Disk for software & manuals

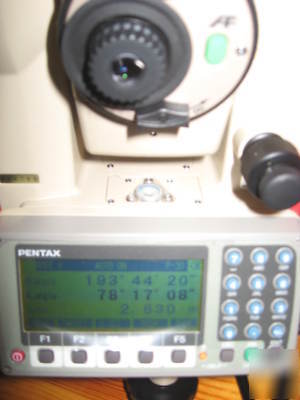

Graphic LCD, alphanumeric, 8 lines of 20 characters
Measuring Range (reflective sheet):
Measuring Range (single prism):
Measuring Range (triple prism):
