New pid digital temperature controller rtd thermocouple

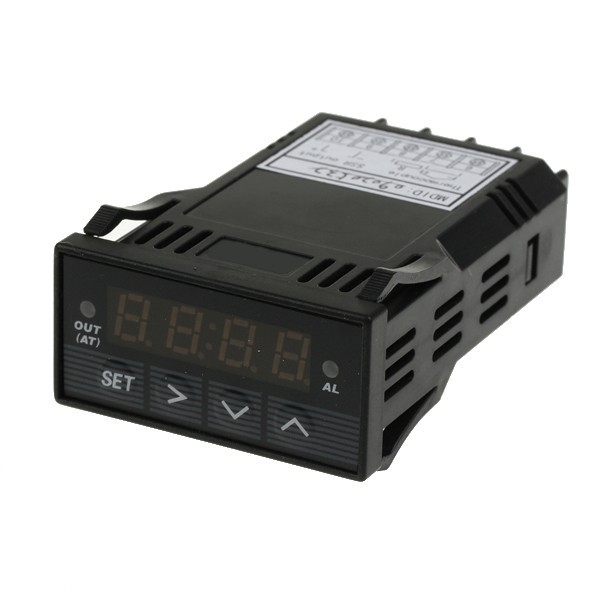

PID Digital Temperature Controller RTD Thermocouple New
The digital PID temperature controller is brand new and boxed and comes with instructions and connection diagrams
* Input: RTD (Pt100, Cu50) or thermocouple (t, R, J, B, S, K, E and Wre-Wre25)
* Power supply voltage: AC/DC 85 ~ 265V
* Relay contact output rated: AC220V, 3A
* Voltage pulse output: 8V (open circuit voltage) 40mA (short circuit current)
* Over scale or under scale display: EEEE
* Digit display dimensions: 0.39"
* Dimensions: 48 x 24 x 75mm
* Cut out dimensions: 45 x 22mm
