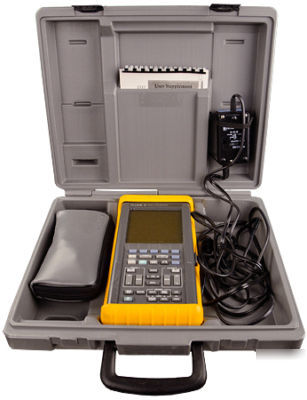

Fluke 2-ch 50MHZ scopemeter model 97 w/probes, ps, case
Fluke 97 2 Channel 50 MHz ScopeMeter w/Probes, PS and Case
The Fluke 97 ScopeMeter combines the capabilities of a dual-trace, digital storage oscilloscope with the versatility of a digital multimeter. This combination allows you to analyze and compare complex waveforms, read voltage levels, or simply measure resistance.
- DC Volts: 300 mV, 3 V, 30 V, 300 V ranges
- AC Volts: 300 mV, 3 V, 30 V, 250 V ranges
- Ohms: 300, 3 k, 30 k, 300 k, 3 M, 30 M ohm ranges
- Deflection factor: 1 mV/div to 100 V/div in a 1-2-5 sequence
- Bandwidth (-3 dB): >50 MHz with 10:1 probe only
- Horizontal range: 5 s to 10 ns per division
- Impedance (channels A, B and Ext. Trigger): 1 M ohm, 25 pF
Internal battery power: NiCad Pack 4 hours typical operating time
2 Channel 50 MHz ScopeMeter w/Probes, PS and Case
