Dh-2000 deuterium halogen light source - ocean optics

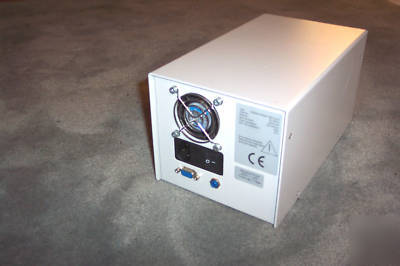

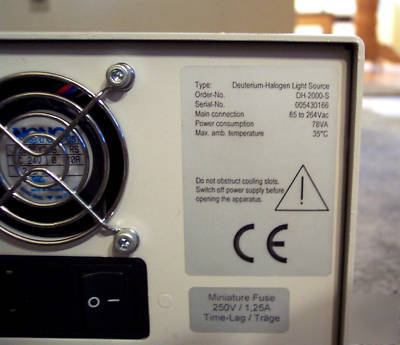

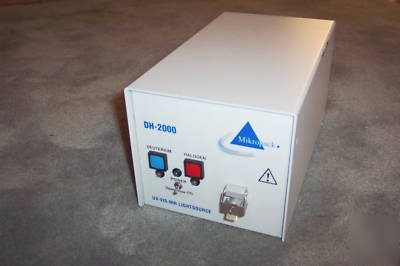

This is the DH-2000-S, which comes with a shutter control option.
DH-2000-S Deuterium Tungsten Halogen Light Sources (with Shutter Control)
The DH-2000 Deuterium Tungsten Halogen Light Source combines the continuous spectrum of deuterium and tungsten halogen light sources in a single optical path. The combined-spectrum light source produces a powerful, stable output from 215-2000 nm. In addition, deep-UV versions of the light source are available, providing a 190-1700 nm wavelength range.
Additional DH-2000 models are available.
Integrated shutters are also available with the DH-2000 and can be driven either by a switch or by a TTL signal. Another option is to include a filter holder with the system, which accepts filters up to 4 mm in thickness and as large as 25-mm square or 20-mm round in diameter. All versions of the DH-2000 have an SMA 905 Connector for easy coupling to our spectrometers and accessories via optical fiber, and a safety shutter for blocking the light when the fiber is not attached.
All versions of the DH-2000 have a potentiometer on the back of the light source to balance the light level between the deuterium and tungsten halogen light sources. This potentiometer allows you to adjust the optical power of the tungsten halogen light from 10-100%.
We recommend using our solarization-resistant optical fibers with all versions of the DH-2000.
This spectral output graph shows the output of the DH-2000 (red) at full power and the DH-2000 with the tungsten halogen at low power (pink), D-2000 (blue). The height of the deuterium atomic emission line depends on the optical resolution of the spectrometer.
DH-2000 Deuterium Light Source Specifications
25 W (deuterium); 20 W (tungsten halogen)
190-400 nm (deep-UV deuterium bulb)
215-2000 nm (standard deuterium and tungsten halogen bulbs)
5-95% without condensation at 40 C
<5 x 10-6 peak-to-peak (0.1-10.0 Hz)
Aperture 0.5 mm, numerical aperture 26 (13 ); focused
DH-2000 Deuterium Light Source Ordering Information
Provides deuterium and tungsten halogen light sources in a single optical path; stable output from 210-1700 nm; integrated shutter; adjustable tungsten halogen power
Identical to the DH-2000, except that it uses a deep-UV deuterium bulb, which provides a 190-1700 nm wavelength range
Identical to the DH-2000, but comes with a shutter (controlled via a TTL signal or switch up to 5 Hz)
Identical to the DH-2000, except that it uses a deep-UV deuterium bulb, which provides a 190-1700 nm wavelength range and comes with a shutter (controlled via a TTL signal or switch up to 5 Hz)
Identical to the DH-2000, but comes with a filter holder for filters up to 25-mm square or 25-mm round in diameter and 4 mm in thickness
Identical to the DH-2000, but uses a deep-UV deuterium bulb, which provides a 190-1700 nm wavelength range, and comes with a filter holder for filters up to 25-mm square or 25-mm round in diameter and 4 mm in thickness
Identical to the DH-2000, except that it uses a deep-UV deuterium bulb, which provides a 190-1700 nm wavelength range and comes with a shutter (controlled via an included external TTL line)
Replacement tungsten halogen bulb for all versions of the DH-2000
Replacement deuterium bulb for the DH-2000, DH-2000-S, DH-2000-FHS
Replacement deuterium bulb for the DH-2000-DUV, D-2000-S-DUV, DH-2000-FHS-DUV
