Wedgewood biostation w/probes

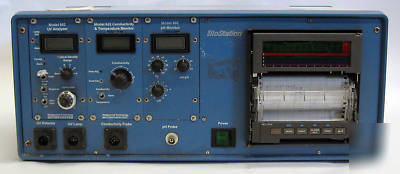

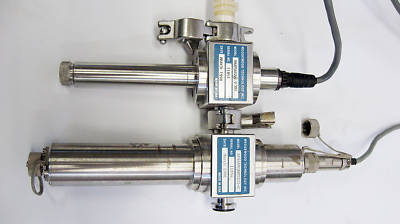

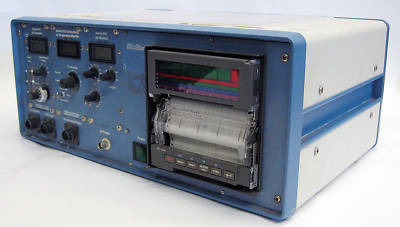

Wedgewood Biostation w/AF44 UV Sensor & B605 pH, Temperature, and Conductivity Flow Cell

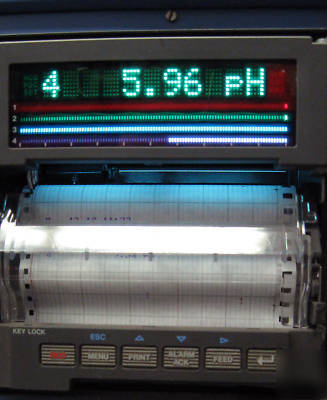

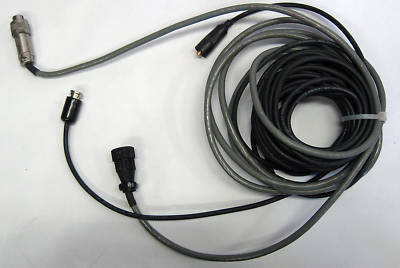

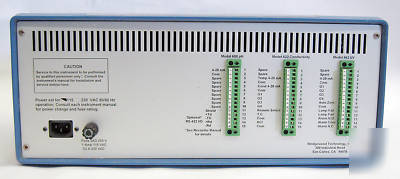

Features Ideally suited for Process Development and Pilot Scale production applications in the Biopharmaceutical industry Pre-engineered system saves installation, startup, and operation costs Portable measurement system with remote process control capabilities Front panel quick connect cables from BioStation to chromatography skid minimizes set up time and ease of maintenance Chart recorder available with hard copy paper or paperless recording and RS422 communication Pre-wired rear panel inputs and outputs with Phoenix connections allow interface to additional laboratory instrumentation systems Low hold-up volume online flow cells require minimum amount of product for measurement Specs Measurement Inputs: pH, Conductivity, Temperature, UV Absorption Please refer to Model 602 pH, 622 Conductivity, and 662 UV data sheets for analyzer specificationsCurrent Outputs: Four 4-20mA dc scaled to selected range for pH Conductivity, Temperature, UVChart Recorder: Yokogawa R1000, 100mm wide paper, 4 color felt tip pens, RS-422 serial outputPower: 115, 230 Vac, 50-60 Hz, 30 VAEnclosure: Bench top painted, NEMA 12 ratedOperating Environment: Temperature 5-40 C (41-104 F) Relative Humidity 20-80%Dimensions: 7.5 H x 18.6 W x 14.25 D i
