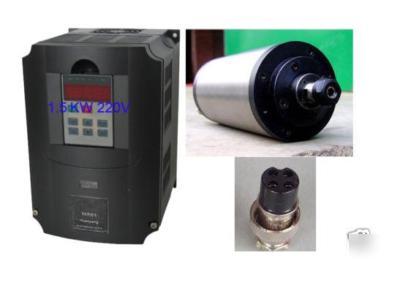

Water-coole motor spindle 1.5KW and matching inverter
* Inpute Voltage: 220 15% (We also stock 380 15%, please contact us for item stock)
* Output Voltage 208-240VAC (analogous to Input Voltage)
* Inpute Frequency: 48-63 Hz
* Outpute Frequency: 0-400 Hz
* Inpute Phase: 1 or 3 phase as you like
* Item Manufactuer: From a well-known manufacture who manufacture VFD for more than 12 years.
220V class 220 15%(we also stock 380V item, please contact us for stock)
5-Digits Display & Status Indicator Lamp
Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
0-95% Relative Humidity without dew
Digital: 0.1% -10~40 ; Analog: 0.1% 25 10
Digital: 0.1Hz; Analog: 1 of max. Operating frequency
External Voltage 0-5V 0-10V 4-20mA 0-20mA.
Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
6 multi-function input terminals for 8 speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.
5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.
Auto Voltage Regulation AVR , Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.
Electronic relay protection motor drive
Drive for constant torque150%/1 min. for the kinds of fan 120%/1min.
When the fuse breaks , the motor will stop.
We also stock 380V item, contact us about stock
Restart with Frequency Track afterInstant Stop
Stall protection in ramp operation
Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc.
Input terminal of AC line power. 220V class, for both single/three phase, single phase connected to any two phases
Output terminal of the inverter
Connector for braking resistor.
Ground terminal: the third method of grounding for 220V and special grounding for 380 V of Electrical Engineering Regulations.
ISO9001 quality certifications which means this item is the top quanlity item
Our item adopts the Japan Mitsubish chip
With perfect error protection and short circuit starting protection capability;
Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
Low output ratting torque0.5HZ-150%, low speed running ability;
* ID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
Spec: 80 * 169 mm (Diameter:80mm x Length:169mm)
* 1.5KW water-COOLE MOTOR SPINDLE x 1
