New 2PC XC5202 pld fpga smt surface mount ic xilinx

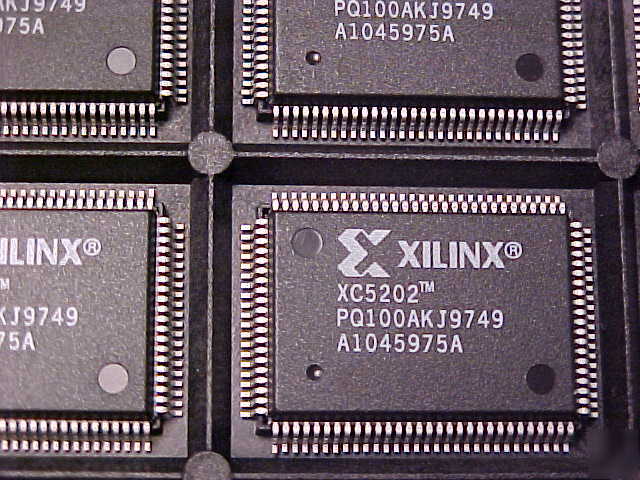

XC5202 PLD FPGA SMT Surface Mount
* Part Number: XC5202-6PQ100I
* Max Logic Gates: 3,000
* Typical Gate Range: 2,000 - 3,000
* VersaBlock Array: 8 x 8
* TBUFs per Longline: 10
-Field Programmable Gate Array - the Xc5202 - the many advantages of the FPGA's over any other programmable device. A FPGA is nothing more than a large amount of logic resources (logic combinatorial gates, buffers and flip-flops) organised in small blocks called CLB. The CLB are configurable. This means they can be programmed to perform the logic function someone has instructed them to do. Unlike microcontrollers, the program code is not read by FPGAs run-time but only during its configuration phase. That's why FPGAs are much faster than MCUs. The Xc5202 is a RAM device. Unlike PROM based devices FPGAs can be programmed very quickly and easily and require to be configured at each power-up.
