Miller trailblazer 302 907452 welder generator efi

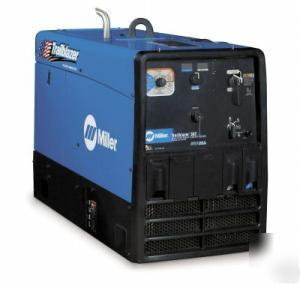

Miller Trailblazer 302 907452 Welder Generator efi
Trailblazer 302 with 23HP gas Kohler motor and (EFI) Electronic Fuel Injection
Designed for the professional welder who needs a welder/generator with excellent arc performance for all types of welding jobs.
EFI) Electronic Fuel Injection
* 12% to 27% better fuel economy
* Reduced emissions- 33% lower HC + Nox levels and 27% Lower CO! (EPA 1000 hour certification)
* 12,000 watts of generator power
12,000 EFI, watts of Accu-Rated - Not Inflated generator power. Cranks out enough power for most applications: job site, farm/ranch, or home. 10,500 watts of continuous power.
Exclusive! Trailblazer Series offers the ONLY two-generator system - one for welding and one for generating power - meaning no interaction between tools and the welding arc, and it has the strongest generator power while welding.
Improved Arc Performance. Legendary four-pole rotor and 3-phase weld output for the smoothest, most stable and flawless multi-process arc in their class. Now with preset DIG settings (Stick), Adaptive Hot Start, and Lift-Arc/Scratch Start TIG with Auto-Stop.
New! DC TIG with Auto-Crater allows time for addition of filler to crater, and eliminates unwanted arc strikes outside the weld area for better weld finishes.
DC TIG with Auto-Stop allows the arc to be stopped without the loss of shielding gas and without unwanted arc strikes outside the weld area for better weld finishes.
Exclusive! Digital Meters with SunVision technology for easy reading in direct sunlight or shade. Self-calibrating digital weld meters with meter maintenance functions.
larger fuel capacityLarger Fuel Capacity. 12-gallon tank can keep the generator running for 14 hours with a 4000-watt load. Exclusive Smart Fuel Tank is designed to minimize the chance of back splash when refueling.
Exclusive! Super-tough Protective Armor with receptacle and output stud covers provides a virtually indestructible barrier from damage. High-impact resistance in all temperatures. Other applications include: automotive bumpers, tractor hoods, lawn mower decks, etc...
Active Field Current Control makes small adjustments to increase overall arc performance in all conditions and weld processes.
Four Pole - Three Phase Weld Output True multiprocess CC or CV output is perfect for the professional welder, producing X-ray quality Stick, MIG, and TIG welds. Its four pole, three phase welding arc is the smoothest, most stable arc in its class.
Engine idles 3-4 seconds after starting to extend engine life and reduce fuel consumption.
Auto Remote Sense automatically switches from Panel to Remote Amperage/Voltage (A/V) control with remote connected. Eliminates confusion of the Panel/Remote A/V switch.
* Air Carbon Arc (CAC-A) Cutting and Gouging (Rated: 3/16 in carbons, Capable: 1/4 in carbons)
* MIG/FCAW: 300 A at 25 V, 100% duty cycle
* DC TIG/Stick: 280 A at 25 V,
* AC TIG/Stick: 200 A at 25 V, 60% duty cycle
* MIG/FCAW: 13 - 35 V, 325 A
* Accu-Rated 12,000 Watts Peak
