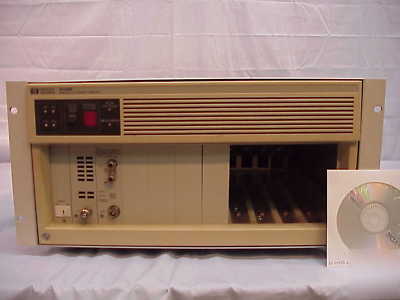

Hp 4142B modular dc source / monitor mainframe tested
Offering a wide measurement range and excellent sensitivity, the HP 4142B modular dc source/monitor
is a system-use dc measurement instrument especially designed for high-throughput dc semiconductor
testers. A completely user-definable system component, the HP 4142B features modular architecture
that allows you to build a custom configuration to suit your measurement needs. Eight plug-in module
slots can accommodate any combination of modules. Choose from two types of source/monitor units
(SMUs) to force or measure up to 200 V and 1 A: a high-current source/monitor unit (HCU) up to 10 A,
a high voltage source/monitor unit (HVU) up to 1000 V, a voltage source/voltage monitor unit (VS/VMU),
capabilities, coupled with the high-speed HP-IB interface, minimize computer loading, enhance throughput,
Flexible, modular architecture
Wide measurement range with high resolution
Pulse measurement capabilities
Pulse width 1 ms to 50 ms, 100 s resolution
High-speed measurement (typical)
Sourcing or monitoring: 4 ms
Program memory: > 2000 commands (typical)
Data memory: 4004 measurement points
