Automatic refrigerant gas cfc hfc freon leak detector

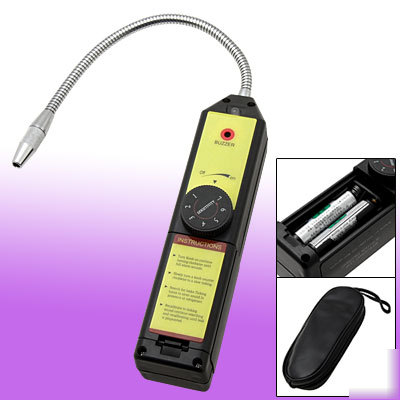

Automatic Refrigerant Gas CFC HFC Freon Leak Detector
* Do your bit for the environment and check for potentially harmful halogen leaks with this portable, handheld leak checker.
* This plastic made Freon Leak Detector is fast, accurate and easy to use and will leave you in no doubt whether it s time to replace or repair leaky air conditioning or refrigeration units.
* Its advanced detection technology enables it to recognize all HFC (134a) CFC refrigerants.
* Audio and visual alerts warn of any leakages, no matter how small.
* Detects all HFC (134a) CFC refrigerants
* Audio siren and visual LED light alert when leak is found
* Sensitivity adjustment dial
* Flexible probe allows you to reach into awkward corners and tight spaces
* Highly precise for accurate readings time after time
* Re-set function enables you to set the meter to ignore ambient concentrations of halogen
* Check your entire refrigerating system including the fittings, house to line couplings, controllers, service parts, the areas around the points of attachment, hold downs on lines and components.
* Halogen Gas Leak Detector responds to ALL halogenated (containing chlorine or fluorine) refrigerants, including:
* CFCs e.g. R11, R12, R500, R503 etc
* HCFCs e.g. R22, R123, R124, R502
* HFCs e.g. R125, R134a, R404a
* Blends including AZ-50, HP62, MP39 etc
* Detect ethylene oxide gas leaks in hospital sterilizing equipment
* Detect SF-6 in high voltage circuit breakers
* Detect most gasses that contain chlorine, fluorine and bromine (halogen gasses)
* Detects cleaning agents used when dry cleaning such as perchloroethy
* Detects halogen gasses in fire extinguishing systems
* Operating temperature: 0 C to 52 C (30 F t 125 F)
* Maximum sensitivity: 6gr/yr for all halogenated refrigerants
* Battery life: approximately 50 hours normal use
* Work mode: continuous no limitations
* Fixed probe length: 17cm (6.5 )
* Unit dimensions: 15 x 3.2 x 3.5cm
* The aluminum neck is about 20cm long.
* Warm-up time: approximately 6 seconds
* Reset time: 2 to 10 seconds
* 1 x Halogen Freon Leak Detector
* 1 x Faux leather storage casefgk
