3.5X-90X inspection microscope+ 1.3M usb camera & light

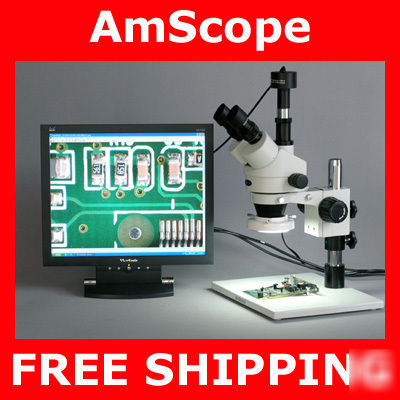

3.5X-90X INSPECTION MICROSCOPE+ 1.3M USB CAMERA & LIGHT
Brand Name: AmScope Model No: SM-1TZ-FRL-M Retail Value: $3,200 This microscope is manufactured under the strict guidelines
* A great SUPER widefield stereo microscope with color USB digital camera
* 1.3 Mega (1280x1024) pixel high resolution color USB digital camera included
* Capturing microscope still images or displaying real-time video on your PC screen
* Displaying full-screen live video images
* Conducting measurement across microscope images
* Measuring lengths, angles, areas and etc
* Built-in reduction lens giving the same field of view images on your PC screen as those seen through eyepieces
* Life-time free software upgrades
* 3.5X-90X extremely large zoom magnification power
* 26:1 extremely large zoom range
* 8" (200mm) extremely large working distance
* 45 inclined trinocular head with SUPER widefield eyepieces
* High-eyepoint design for easy observation including eyeglass wearers
* 23mm upright tube for photo or video capacity
* 30mm SUPER widefield eyepieces, 10X (see the difference in the above picture), included
* Sharp stereo erect images over a SUPER widefield of view
* Super large metal pillar stand finished with stain resistant enamel
* Accurate alignment ensuring a fatigue-free long time viewing
* Five (5) year manufacturer warranty for microscope
* Eyepiece: 30mm super wide field high-eyepoint WF10X/20
* Auxiliary Objective: 0.5X & 2.0X
* Interpupillary Distance: 2-3/16" - 2-15/16"(55 - 75mm)
* White/Black Plastic Plate: 3-3/4" (95mm) in diameter
* Illumination: 8W fluorescent ring light
* Power Supply: 110V/60Hz (220V/50Hz version available)
* Accessories: eye-guards and clips
* One Pair of Super Widefield High-Eyepoint Eyepieces, WF10X/20
* One Super Large Pillar Stand
* One 1.3MP USB Digital Camera with Software and Driver and User's Instructions
* Focus Rack, Eye-Guards and User's Manual for the Microscope
WF10X Eyepiece with Reticle for Measurement
15X Super Widefield Eyepieces for Exten-ding Magnification Power Up to 135X
Eyepieces for Exten-ding Magnification
More Options of Microscope Digital Cameras
