15-ton h-frame hydraulic press 1951 how-to build plans

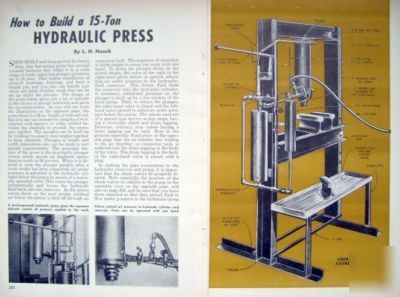

How to Build a 15-Ton Hydraulic Press
This is an Original 1951 Three and a Half-Page how-to build article / plan that was removed from a vintage magazine.
Excerpt: "Shop-built and shop-proved for heavy duty, this fast-acting press ;has several unusual features that adapt it to a wide range of work requiring plunger pressures up to 15 tons. That makes installation of press-fit bushings, bearings, and keys a simple job, and you also can handle just about any kind of arbor work that can be set up under the plunger. The design of the press frame gives you a lot of latitude in the choice of salvage materials and parts for its construction. Changes in height and width dimensions can be made to suit special requirements..."
