Pcs 1500 watt fm broadcast rf amplifier (pallet)

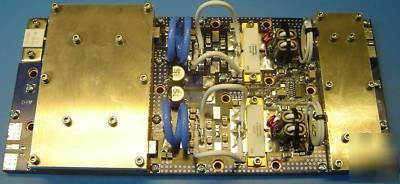

PCS ELEC 1500 WATT FM AMPLIFIER PALLET
JANUARY SPECIAL 1500 WATT FM AMPLIFIER PALLET
This model was designed to be 4 inches wide to allow 4 units to be placed side by side in a 17 inch wide rack. These modules are ideally suited for building 5000W transmitters where high efficiency and wide margin is critical. These pallets are 90 degree hybrid combined which provides a pure 50 ohm output impedance and eliminates reactions and losses when multiple units are combined. These pallets may dissipate up to 500W of heat in a worst case operating condition and they are intended for use with high performance bonded fin heatsinks only.
If you do not have RF experience we strongly recommend you ddo not purchase this amplifier, you can purchase this unit fully built into one of our 19" rack mount cases, please see our web site for more details.
* 43-45 Volts @ 44 - 46Amps DC
* Pout 1500W min. 4 watt input
* Heavy duty output hybrid is rated for 2000W.
* Size; LxWxH 4 x 9 x 1.5 inches
Summary: A truly professional FM broadcast wide-band no tune RF Amplifier Module, featuring advanced technology, can be operated across the entire FM Band II 88 - 108MHz, requires heavy duty bonded fin fin heat sink, we can supply if you require, at least 2 x high velocity fan capable of producing a minimum of 280 cfm, we can supply the correct fans please ask, requires minimum 45 amp 48v DC power supply to obtain full output power, we recommend a couple of our RSP-1000-48 power supplies these can be purchased direct from our web site.
All items are brand new unless otherwise stated. Warranty is for One year from date of purchase and covers all items against manufacturers defect.
