Norgren linear rodless air slide cylinder m/46016B

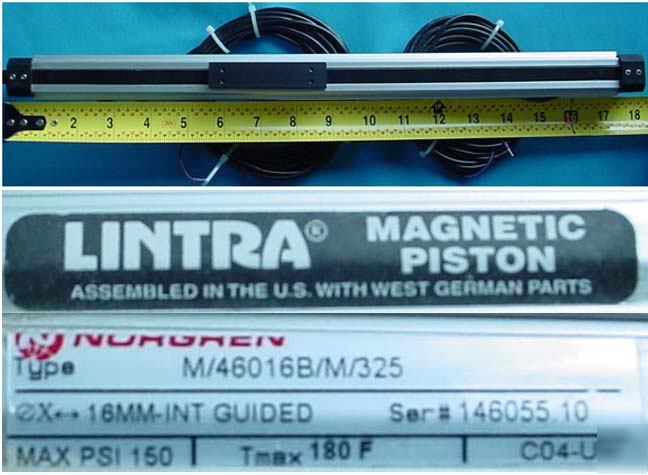

Be sure to add me to your favorites list!This is a Very Nice Pneumatic Norgren Rodless Cylinder with external guide, 16mm Bore with 325 mm stroke.
It has two reed switches fo sensing the stroke ends The retail price is $535.00 and you can have it for $125.00
For long strokes with compact size and an integrated guide, the Lintra series rodless actuator provides an ideal solution.
Non-rotating load carrying capability without additional guide rods and bearings.
Rodless design means there is no rod that can buckle or kink.
Equal forces can be applied to each stroke direction.
New lightweight design extrusion with integral slots for switch mounting
Capable of withstanding large bending moments and lateral forces
Double acting with adjustable cushioning
Operating Pressure: 150 psi max
Anodized aluminium carriage, special anodized extruded aluminium alloy cylinder barrel, polyurethane sealing strip and piston seals, polyamide cover strip, nitrile rubber seals
