Mori seiki SL25Y/500 4-axis cnc turning & milling

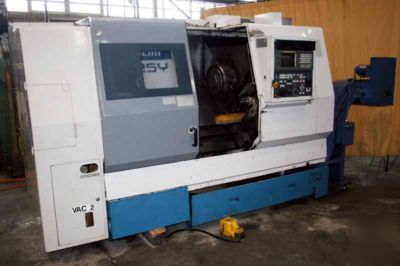

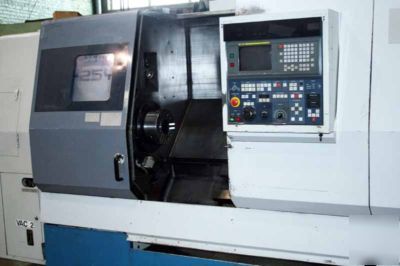

MORI SEIKI SL25Y/500 4-AXIS CNC TURNING & MILLING MACHINE

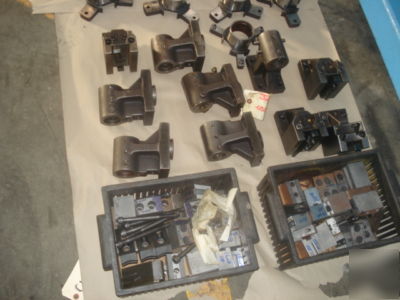

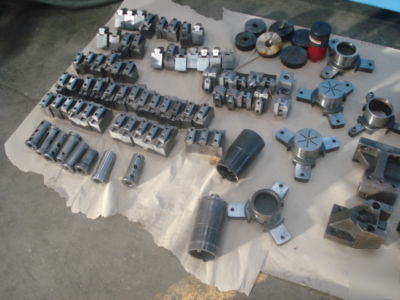

Moric T6 (Fanuc 16TA) CNC Control. Full 'C' Axis Spindle Positioning Axis. 12-Position Turret With (6) Rotary Tool Station. Y-Axis Milling Capability. 10" 3-Jaw Kitagawa B-210 Chuck With 3.1" Hole Thru. Approximate (12) ID Tool Holders. Approximately (7) OD Tool Holders. Approximately (6) Live Milling Tools. Approximately (3) Right Angle Live Milling Tool Holders. Vega 1000 Chip Blaster With 8 GPM, 1000 PSI Capacity And Cartridge Filtration. Oil Chiller. Chip Conveyor. Bar Feed Interface. Chuck Jaws. Miscellaneous Tooling.
Swing over Cross Slide 350mm(13.78")
Max. Turning Diameter 340mm(13.39")
Max. Turning Length 550mm(21.65")
Through Spindle Hole Diameter 80mm(3.15")
Min. Spindle Index Angle 0.001
Number of Tool Stations Rotary Tool 6
Rotary Tool Spindle Speed Range 80-2000 RPM
Rapid Traverse Rate - X 12000mm/min(472.44 IPM)
Rapid Traverse Rate - Z 15000mm/min(590.55 IPM)
Feed per Revolution - X 0.003-342mm(0-13.46 IPM)
Feed per Revolution - Z 0.003-428mm(0-16.85 IPM)
Jog Feedrate - X & Z 1260mm/min(49.61 IPM)
Tailstock Travel 491mm(19.33")
Tailstock Spindle Diameter 85mm(3.35")
Taper Hole of Tailstock Spindle MT3
Tailstock Spindle Travel 80mm(3.15")
Maximum Thrust Force 651kgf(1432.20 lbf)
Spindle Drive Motor 15/11kW(20/15 HP)
Rotary Tool Spindle Drive Motor 3.7/2.2kW(5/3 HP)
Approximate Weight 4400kg(10,000 lbs)
